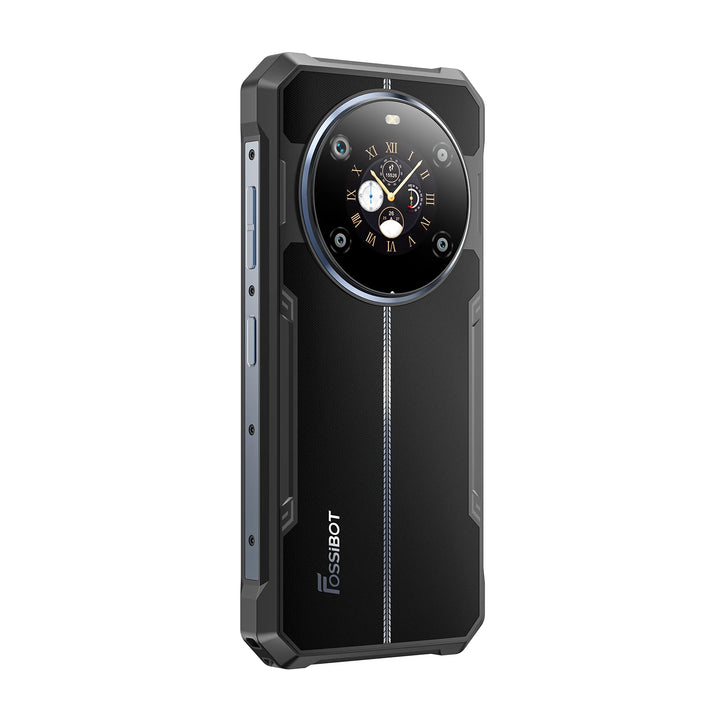

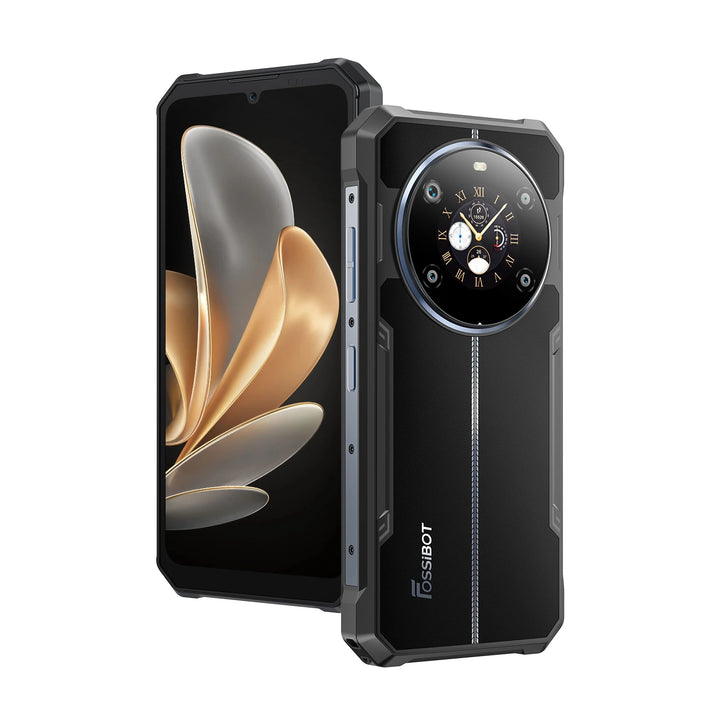

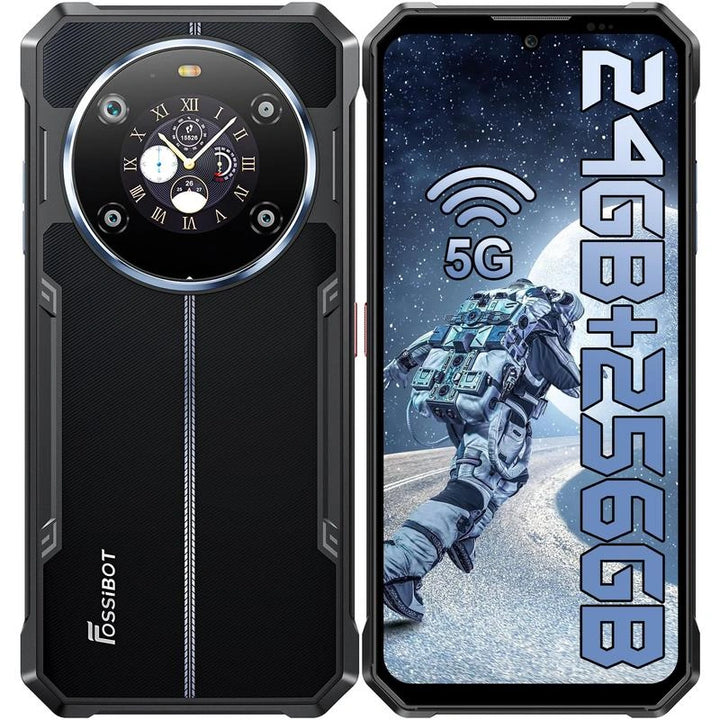

FOSSiBOT F109 5G 24GB+256GB 6.745-Inch Main & 1.32-inch Innovative & Multifunction Rear Display 10600mAh NFC Rugged Phone

$299.99 $229.00 SAVE 24%
Tax included.

100-day free trial (Get a full refund when you return your undamaged products within 100 days - for any reason. Once the item arrives back at the fossibot warehouse for inspection, the refund process will begin).

🚛 Fast shipping from local warehouses in Germany (Tax included)

✔5G 6nm Octa-core MediaTek Dimensity 6300 CPU
✔1.32 inch Innovative & Multifunction Rear Display
✔24GB RAM (8GB+Up to 16GB Extended RAM) / LPDDR4X
✔256GB ROM (Up to 2TB Extended TF-Card) / UFS
✔6.745 inch HD+ IPS screen
✔10600mAh Large Battery with 18W Fast Charging
✔50MP Rear Camera + 16MP Front Camera + 5MP Macro-Camera
✔Latest Android 14 System
✔Support Face Unlock
✔NFC Supports Google Pay
✔IP68/IP69K Waterproof/ Dustproof/Shock-resistance

Plug Type: US

US
EU

Color: Gray

Gray
Frequency Bands

Free Fast Shipping

2-year Warranty

Customer Support
Innovative F109, Global First Mid-range 5G Rugged Phone with Dual Display
Powerful 5G 6nm Processor
Professional 50MP AI Camera
Innovative Dual Display
Explore More Features on the F109!
50MP AI Main Camera
5MP Macro Camera+16MP Front Camera
6nm Dimensity 6300
Octa-core Processor
10600mAh Battery
18W Rapid Charging
8GB RAM+256GB ROM
Up to 24GB RAM
Latest Android 14
System
NFC
Support
6.745" HD+ Display
Colorful & Vivid Colors
IP68 • IP69K • MIL-STD-810H
  • Waterproof
  • Dustproof
  • Drop-proof
Microchip
Superior Performance New Upgrade
Supreme Performance with 5G Chipset
Unleash the full potential of the Dimensity 6300 5G processor,built on an advanced 6nm architecture and clocked at an im-pressive 2.2GHz. Experience blazing-fast speeds and effortless multitasking in high-intensity gaming, smooth streaming, and everything in between.
Faster & MoreFluent In Handling Tasks

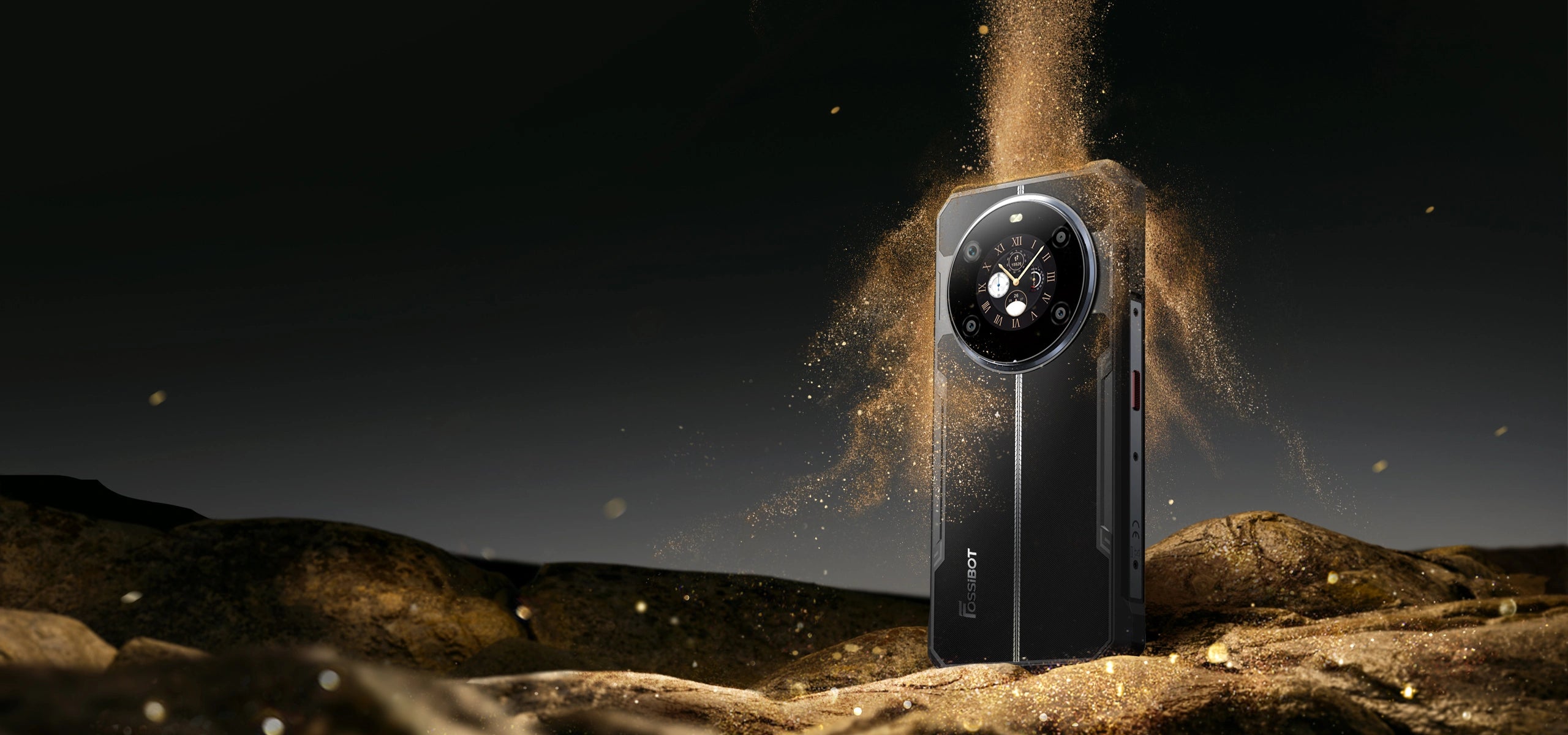

Design

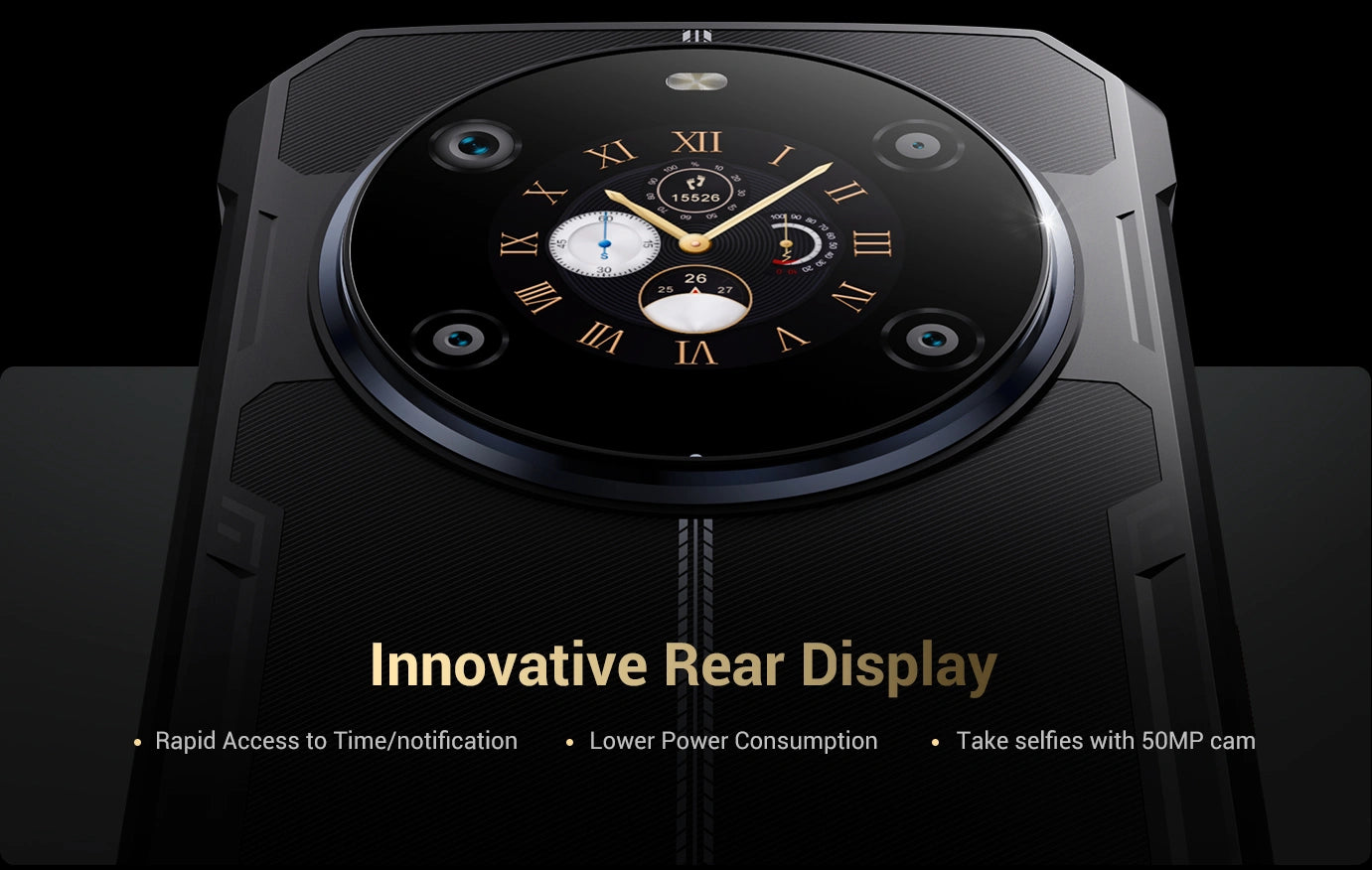

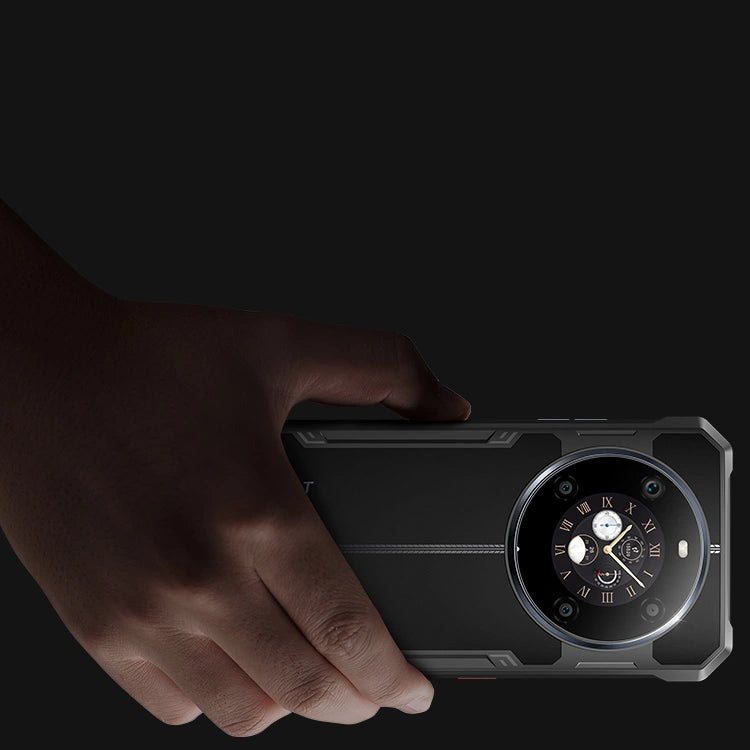

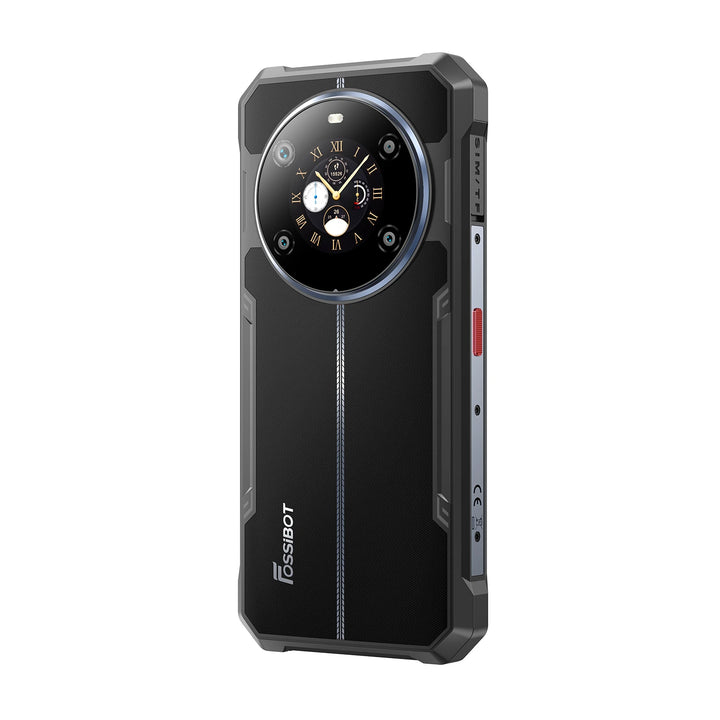

Innovative Rear Display Trendy And Practical
Fast Processing of Multiple Information
Explore the multi functions ofthe 1.32" secondary touch screen on the back. It offers not only different stylies of watch pad. but also practical functions like detailed selfies, notifications, controls of music, timer, accept incoming calls, etc.
● Rapid Access to Apps/notification
● Customized Dial Design
● Take a selfie with the rear camera,Enjoy 50MP HD selfies
Low-power Sub-screen with 25%
Lower Power Consumption
When you are in urgent need of longer battery endurance, you can extend the F109 using time by using the secondary screen for compass direction.you can maximize your usage time and stay connected even in times of outdoor crisis.

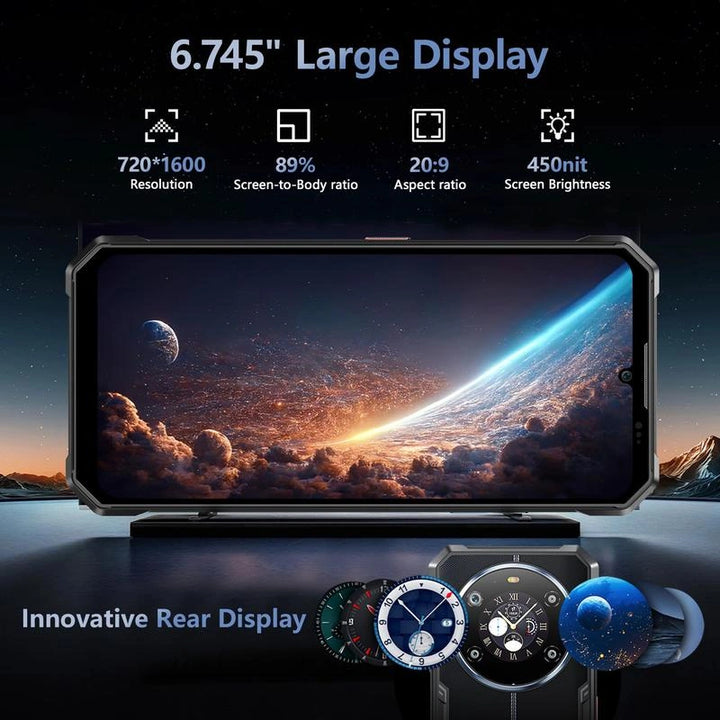

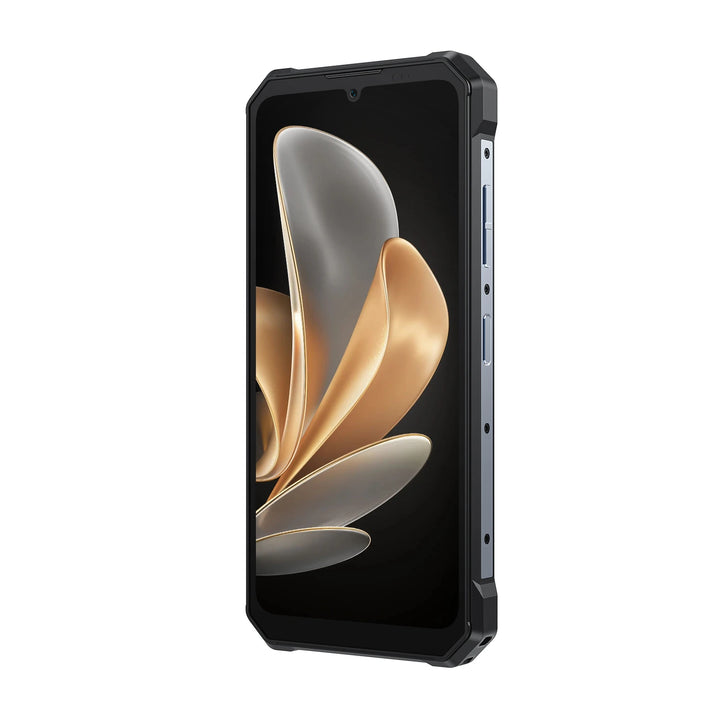

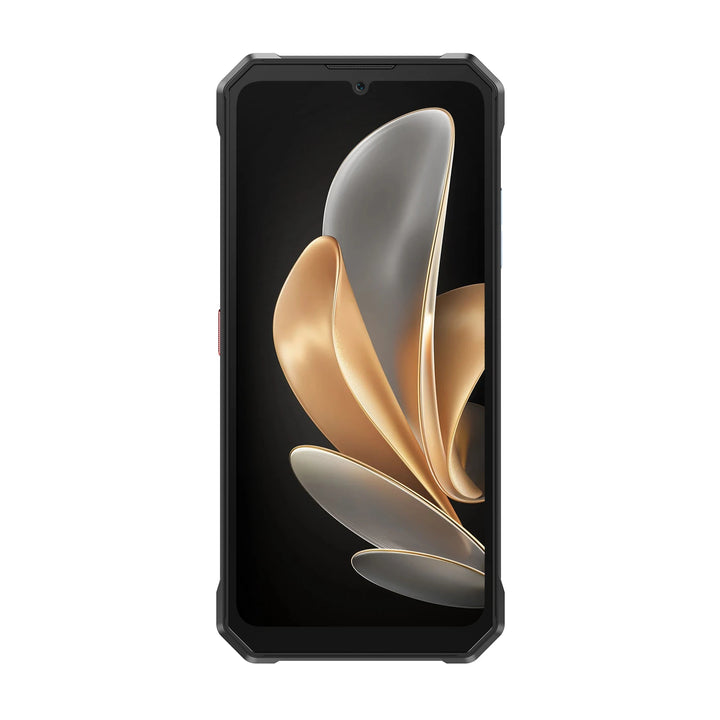

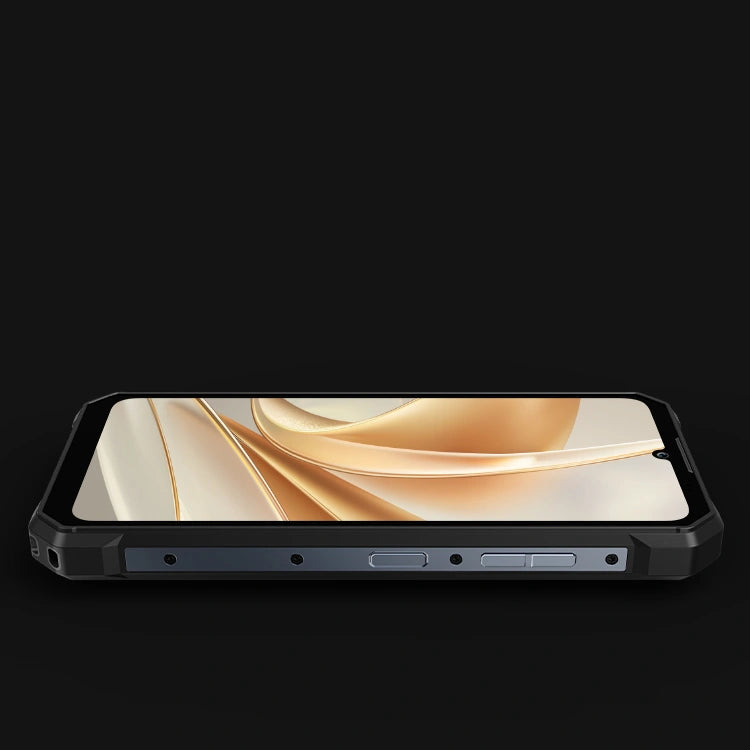

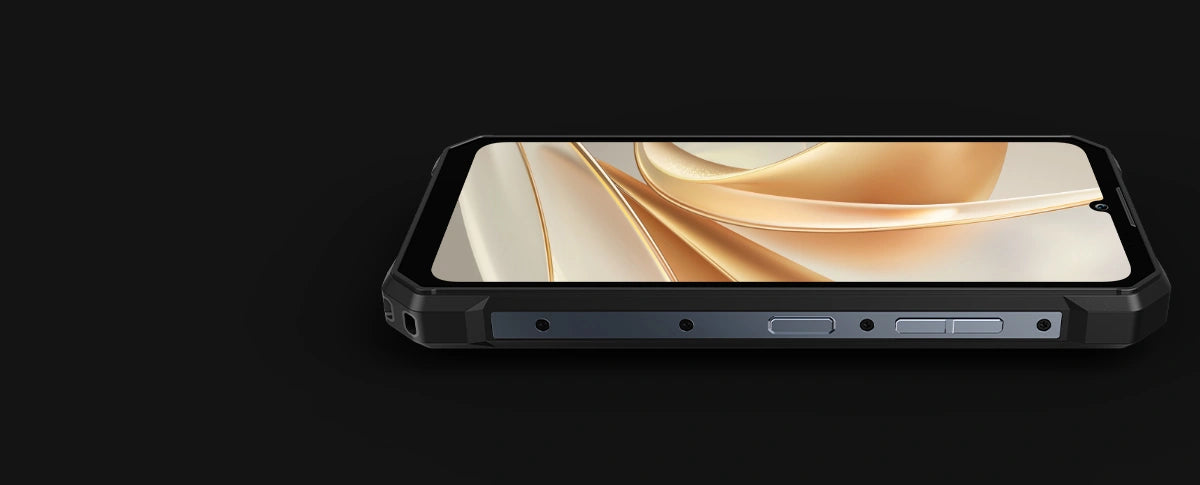

Large Screen 6.745"HD+ lmmersive Display
Experience briliant visual experience for images, videos and APPs with on the stunnina 6,745" HD+ IPS display ofthe FOSSiBOT F1O9
Camera

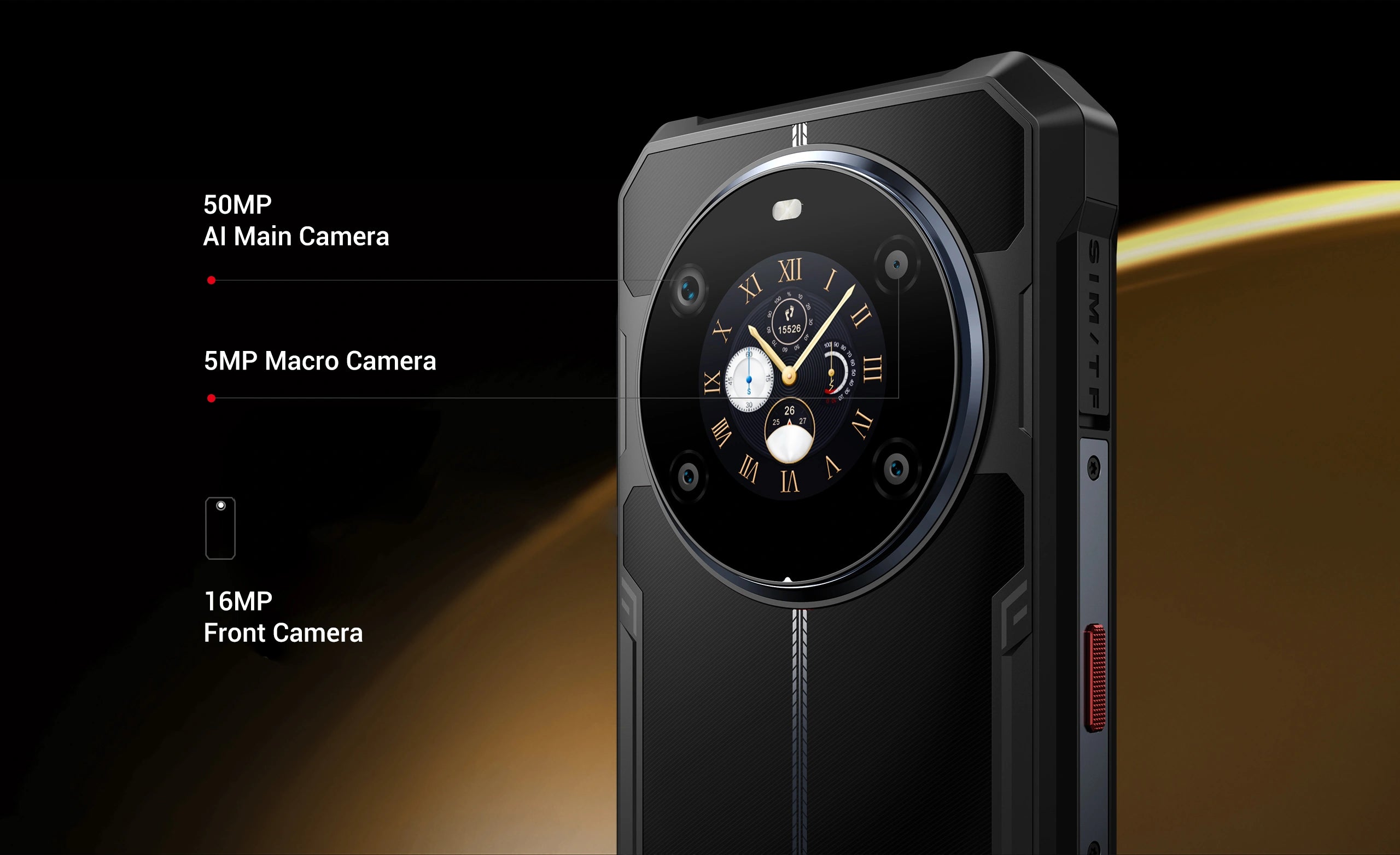

Impressive cameras,Record your Adventures
50MP AI Main Camera
Equipped with 50MP sensor with F1.8 aperture, whether indoor or outdoor, day or night, F109 allows you to take excellent photos.
16MP Front Camera
No dull or blurry selfies, Enjoy taking selfies with friendsand family members with the 16MP front camera or 50MP rear camera by secondary screen.
5MP Front Camera
Do you love exploring the microscopic world? Use the F109 macro camera to record detailed beauty.
Durability
Large capacity Large Power

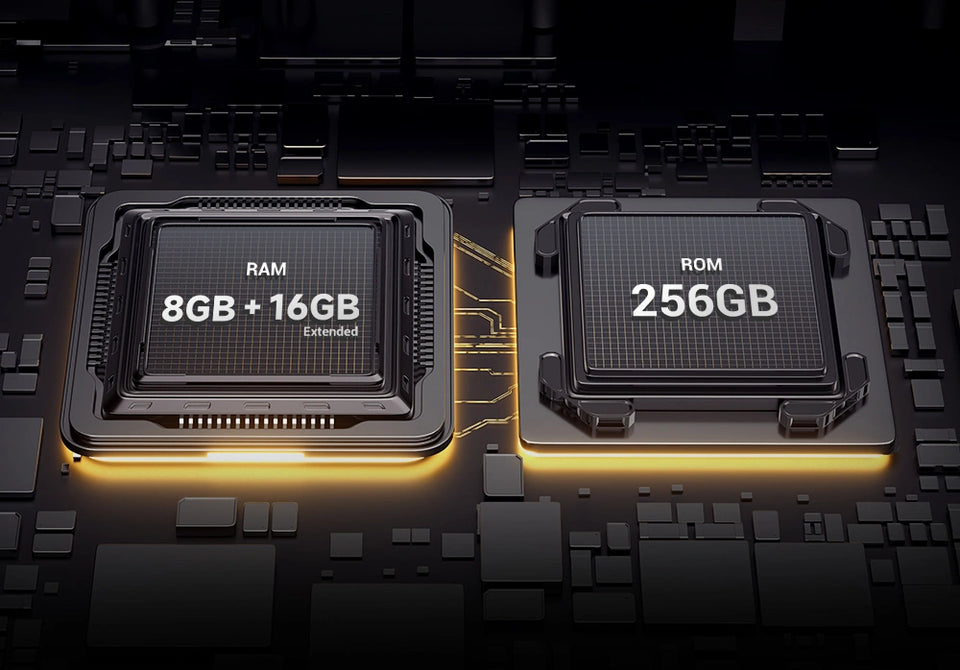

Ample Memory, Store All You Want
Say goodbye to limits and embrace endless possibilities with an impressive 24GB RAM (8GB + 16GB Extended RAM). Effortlessly switch between apps, games, and tasks with ease, and experience smooth multitasking like never before.

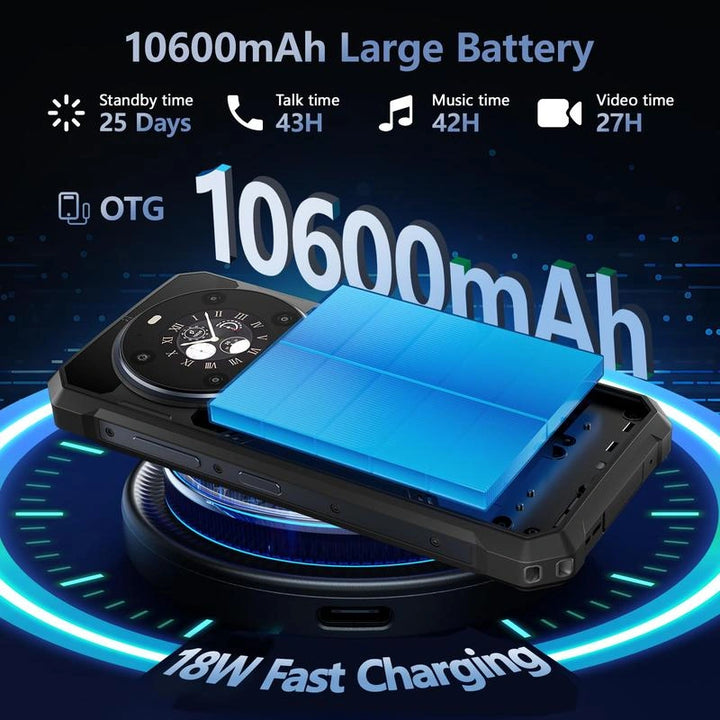

Battery

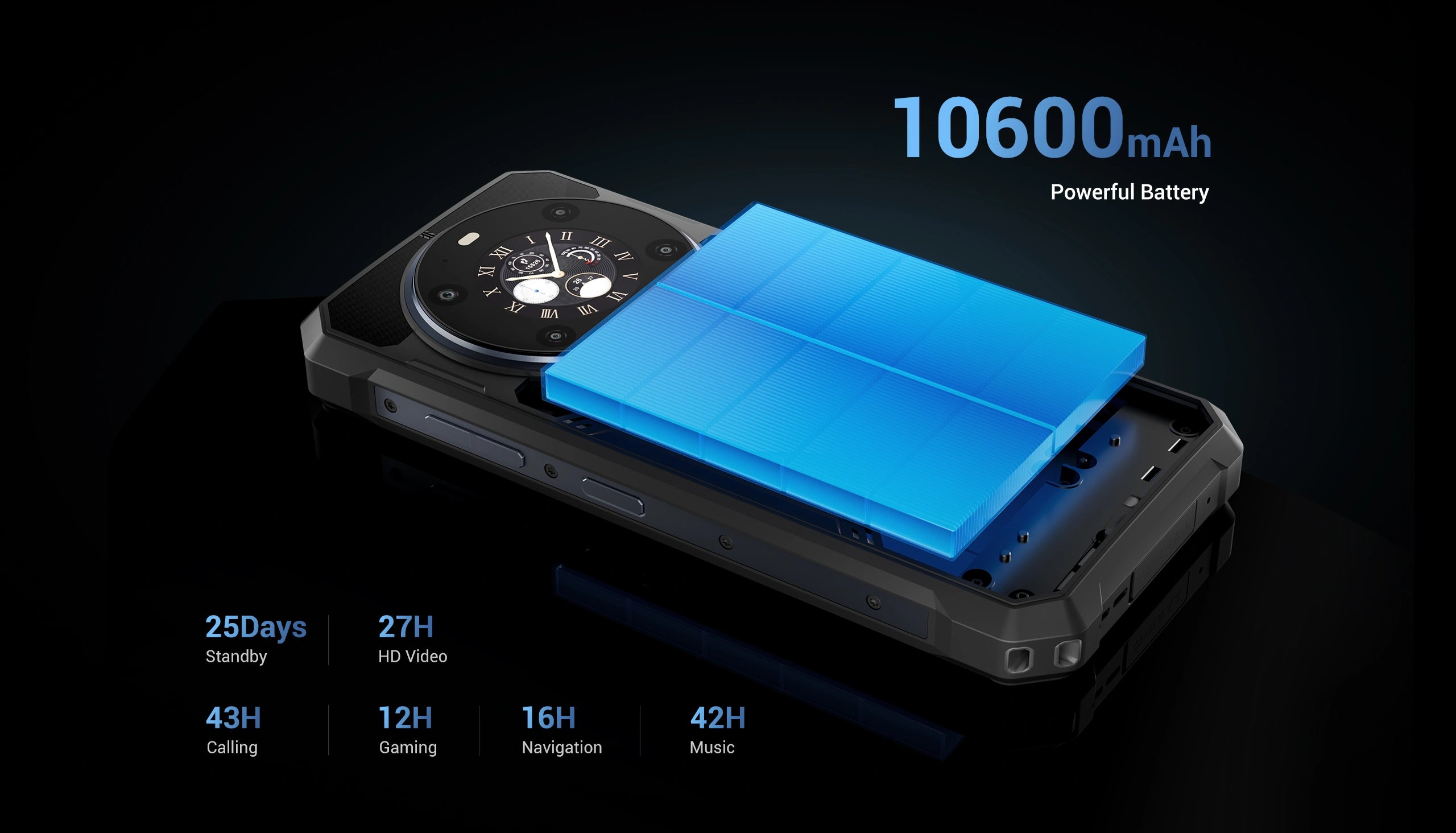

Up to 25 Days of Standby
Powered by a massive 10600mAh battery, your adventures will last longer than you expected. With once full charge by 18W fast charger, the F109 will offer you up to 30 days of standby with a single sim inserted.

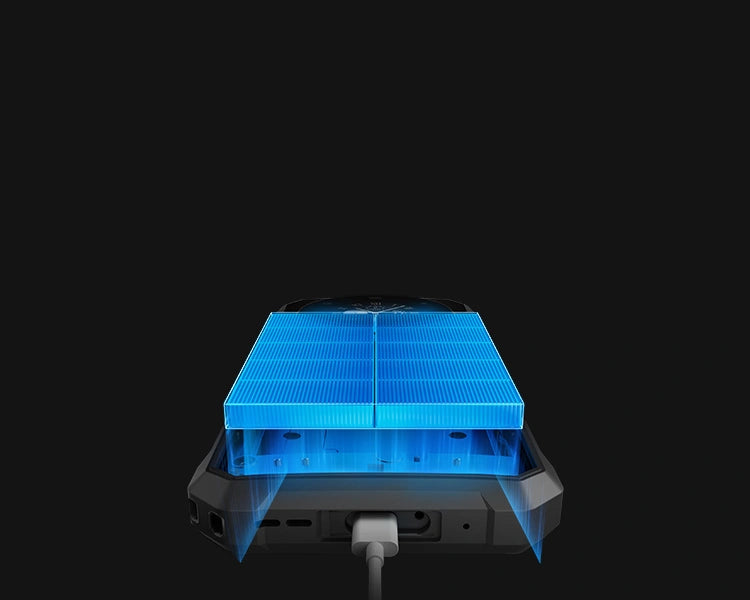

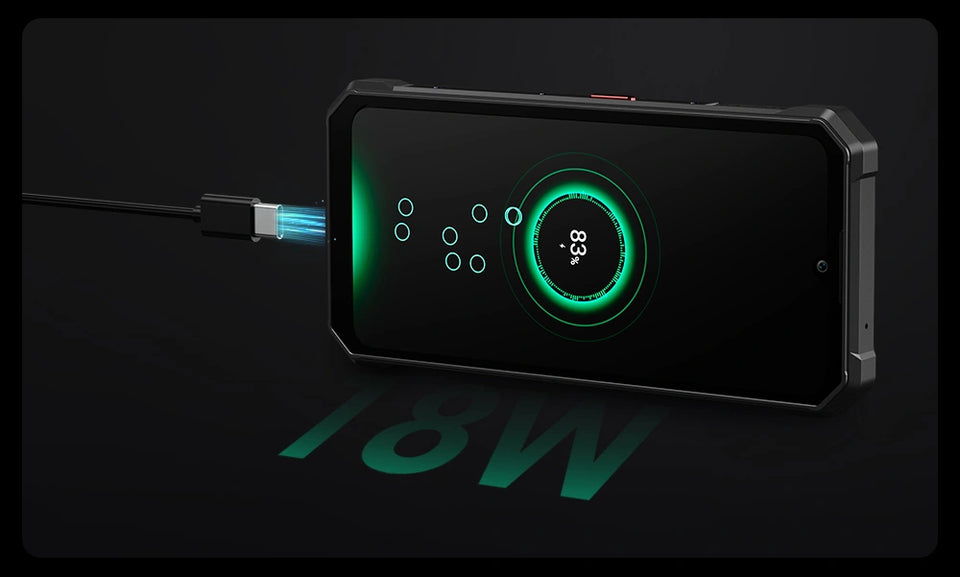

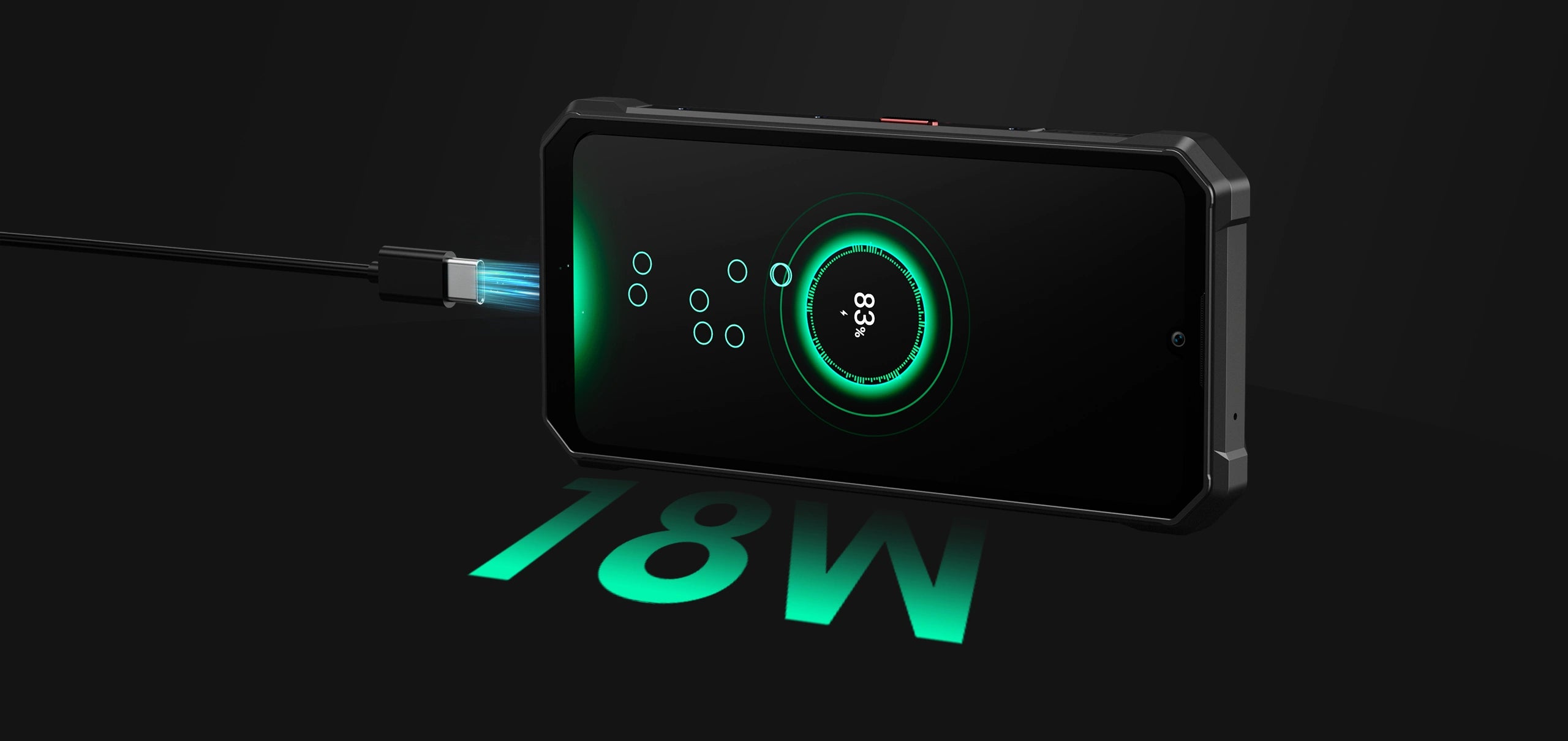

18W Fast charge
FOSSiBOT F109 comes with a 18W fast charger, which means you canreplenish your battery quickly and efficiently when needed.
Charge:
0~70%
2H
Charge:
0~100%
4H

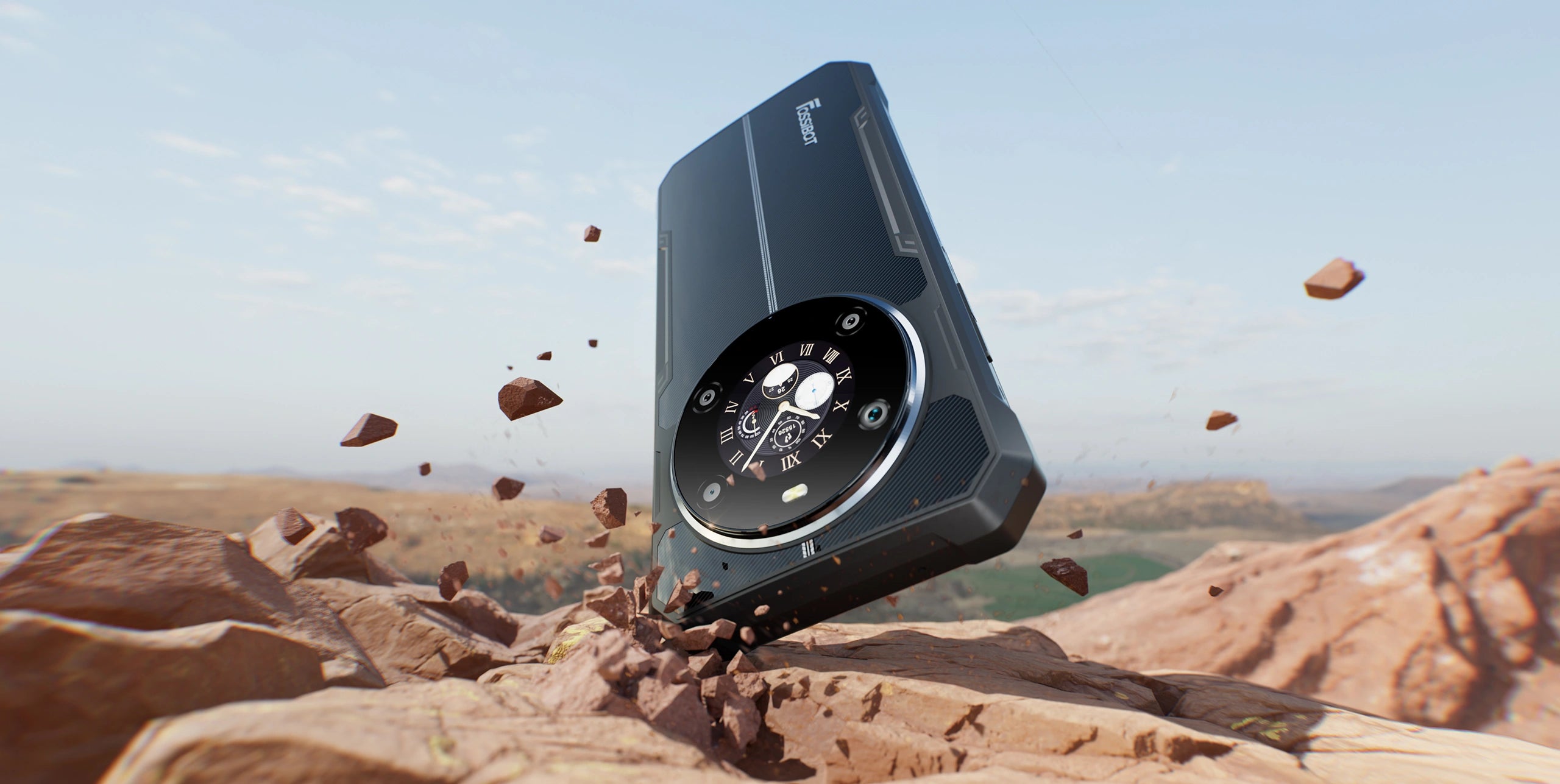

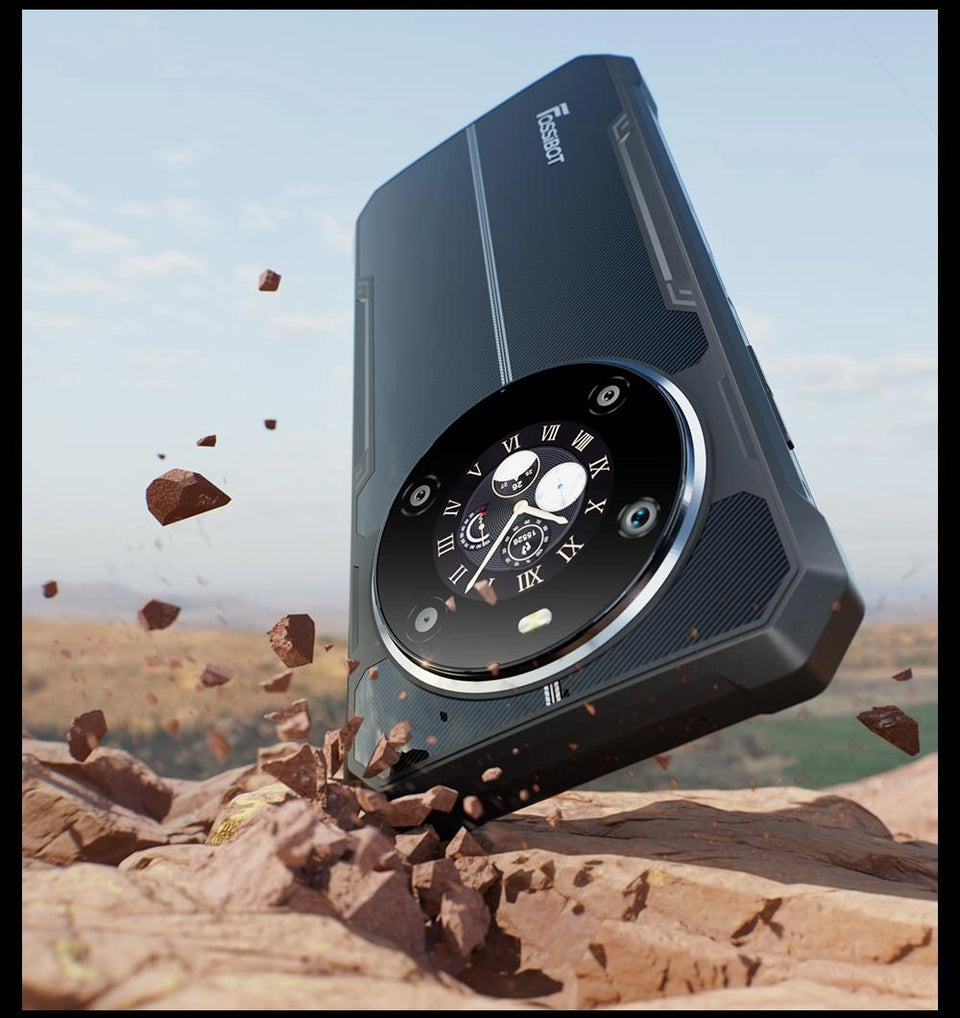

Roubustness
Adaptation to Extreme Environments
The Military Grade Design Rugged & Waterproof for AnyAdventure:
Explore and adventure the unknown with confidence.
MIL-STD-810H
1.5m Drop-resistance

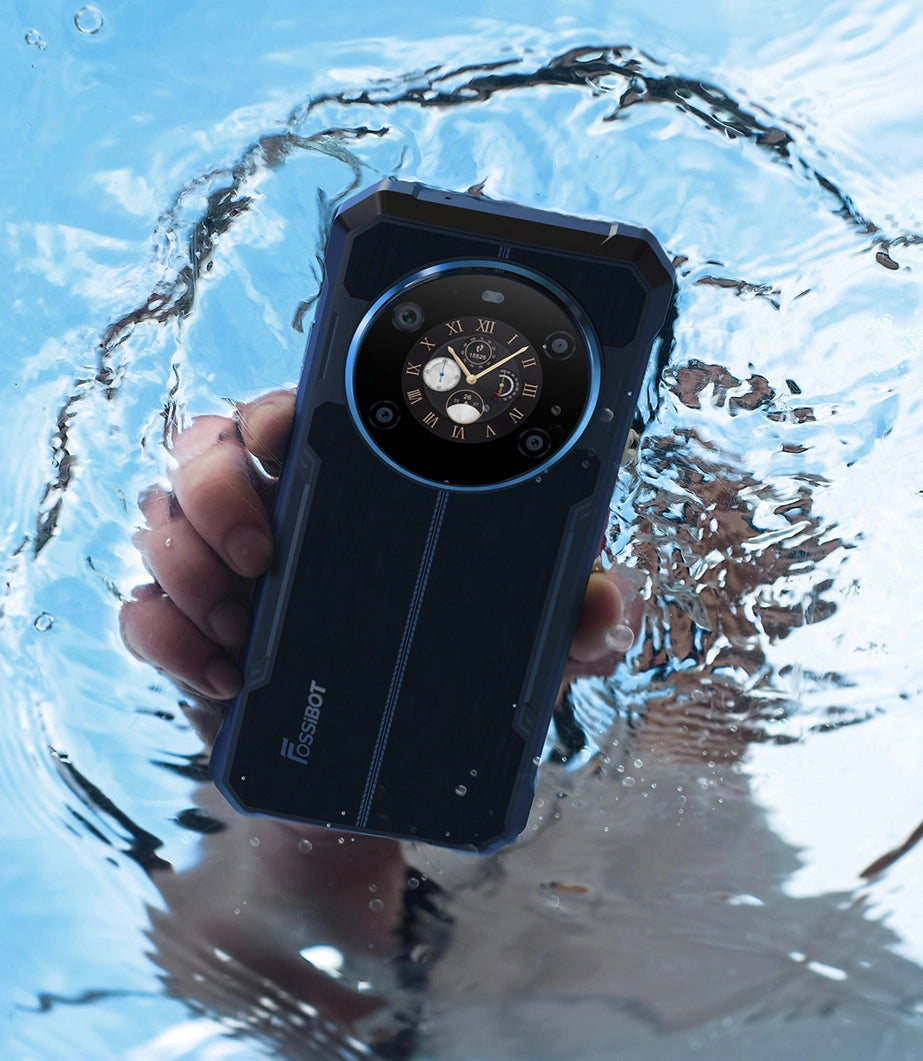

IP68/I69K 1.5m Underwater 30Mins
Also able to withstand high temperature and highpressure water flow and jetting

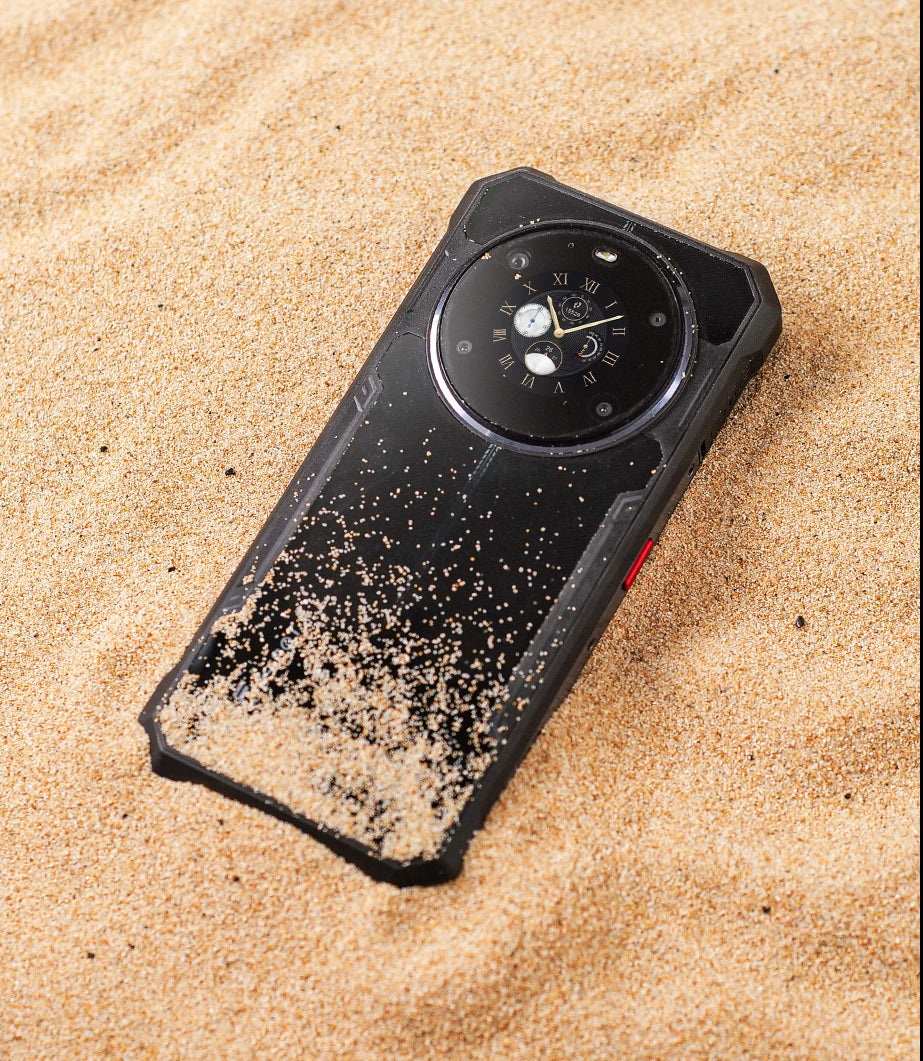

360° All-round Dust-proof
Works well even in dusty environments

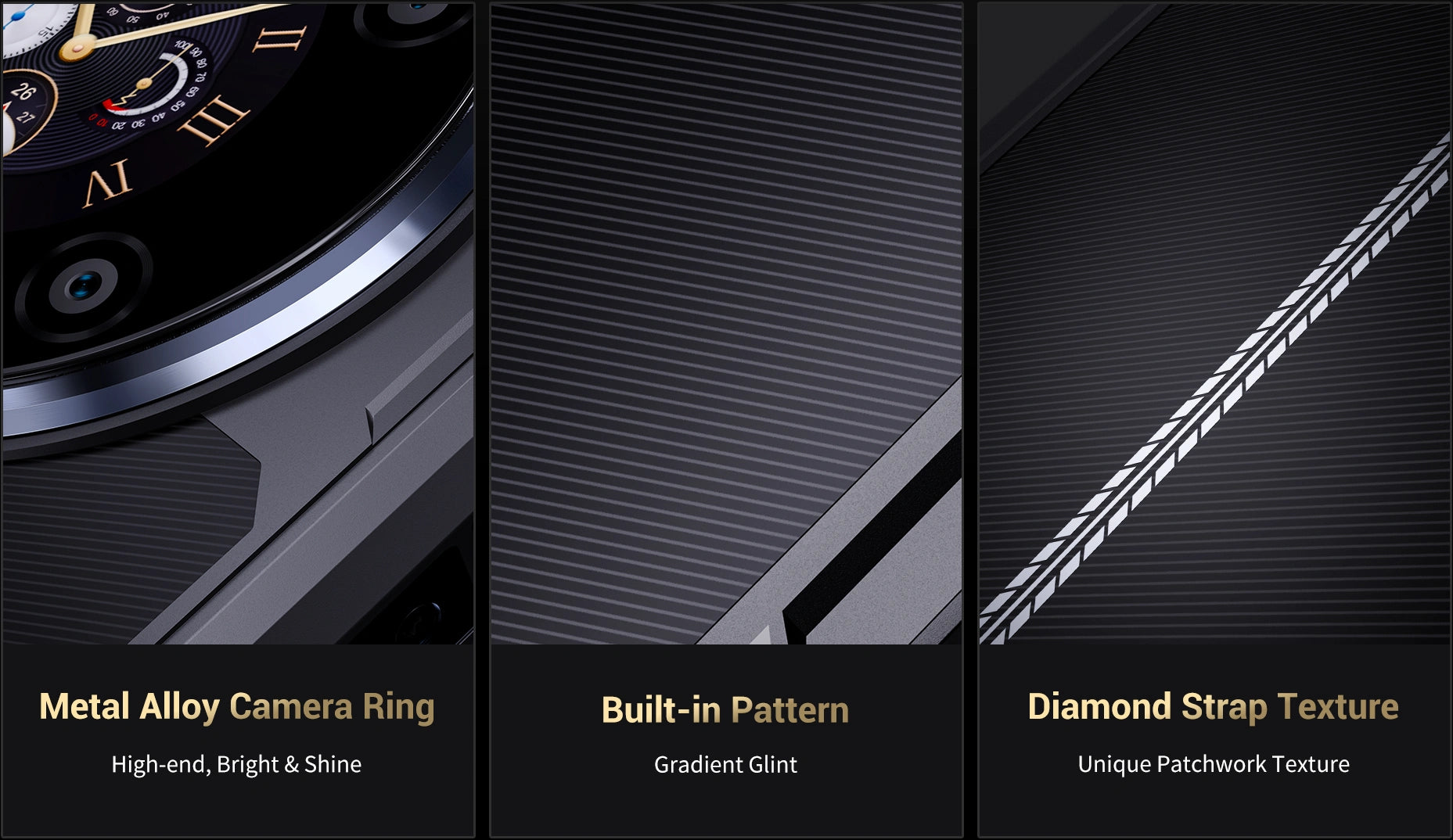

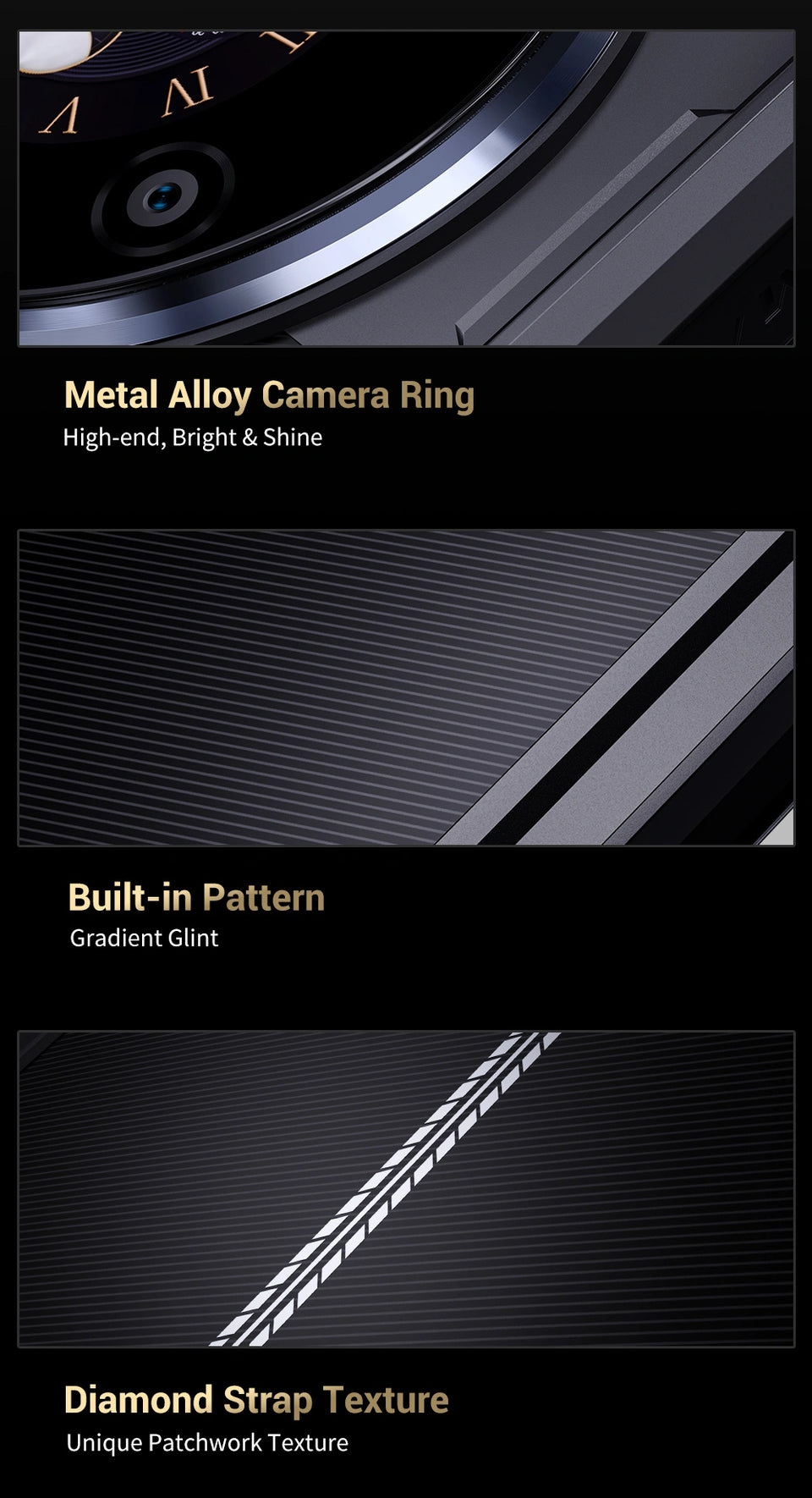

Remarkable Details, Exquisite Craftsmanship
Rugged and Ready For challenges
The F109 is long-lasting, rugged, powerful and qreat in camera. it's the favorite choice for:
Multi-function NFC
One Mobile Phone is Enough When You Go Out
Stay seamlessly connected with NFC on your smartphone. Tap, pay, and share with simplicity, enhancing your convenience every step of the way.

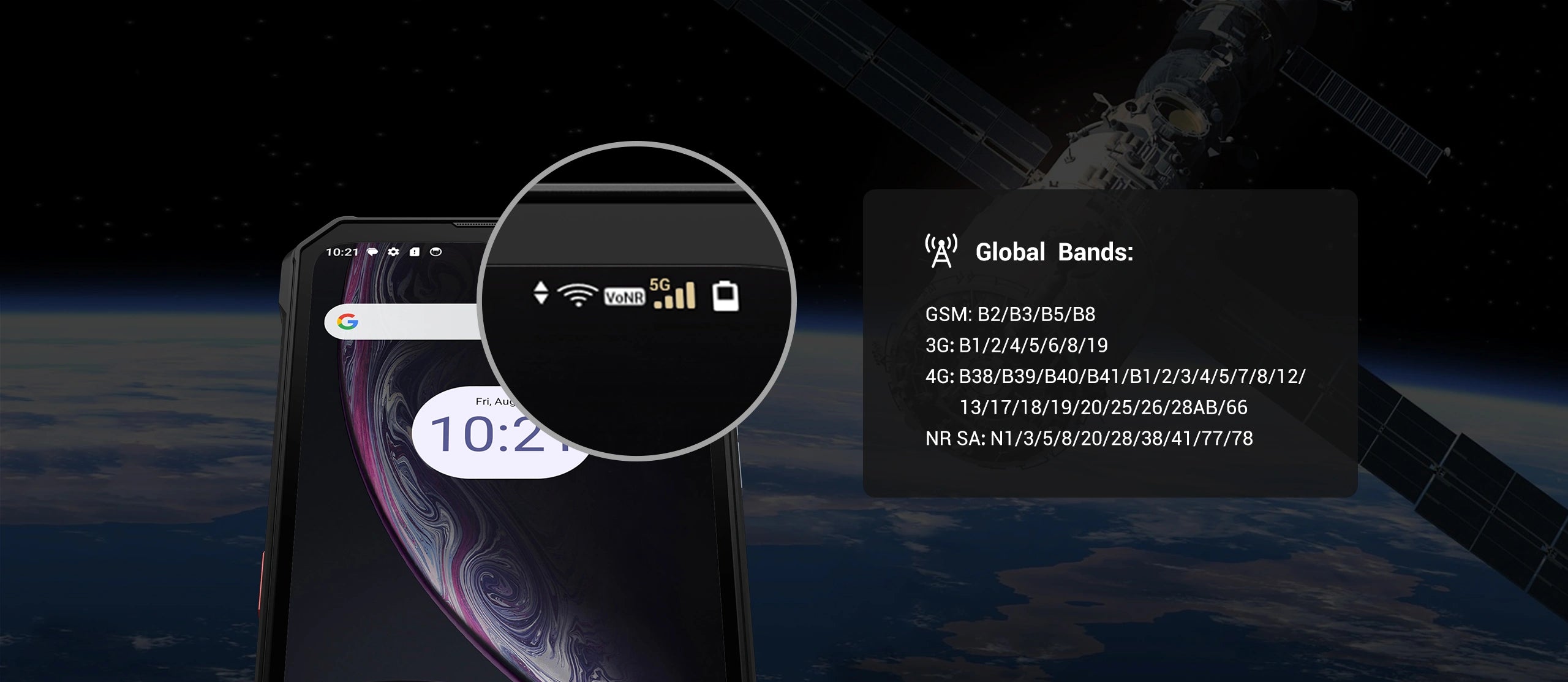

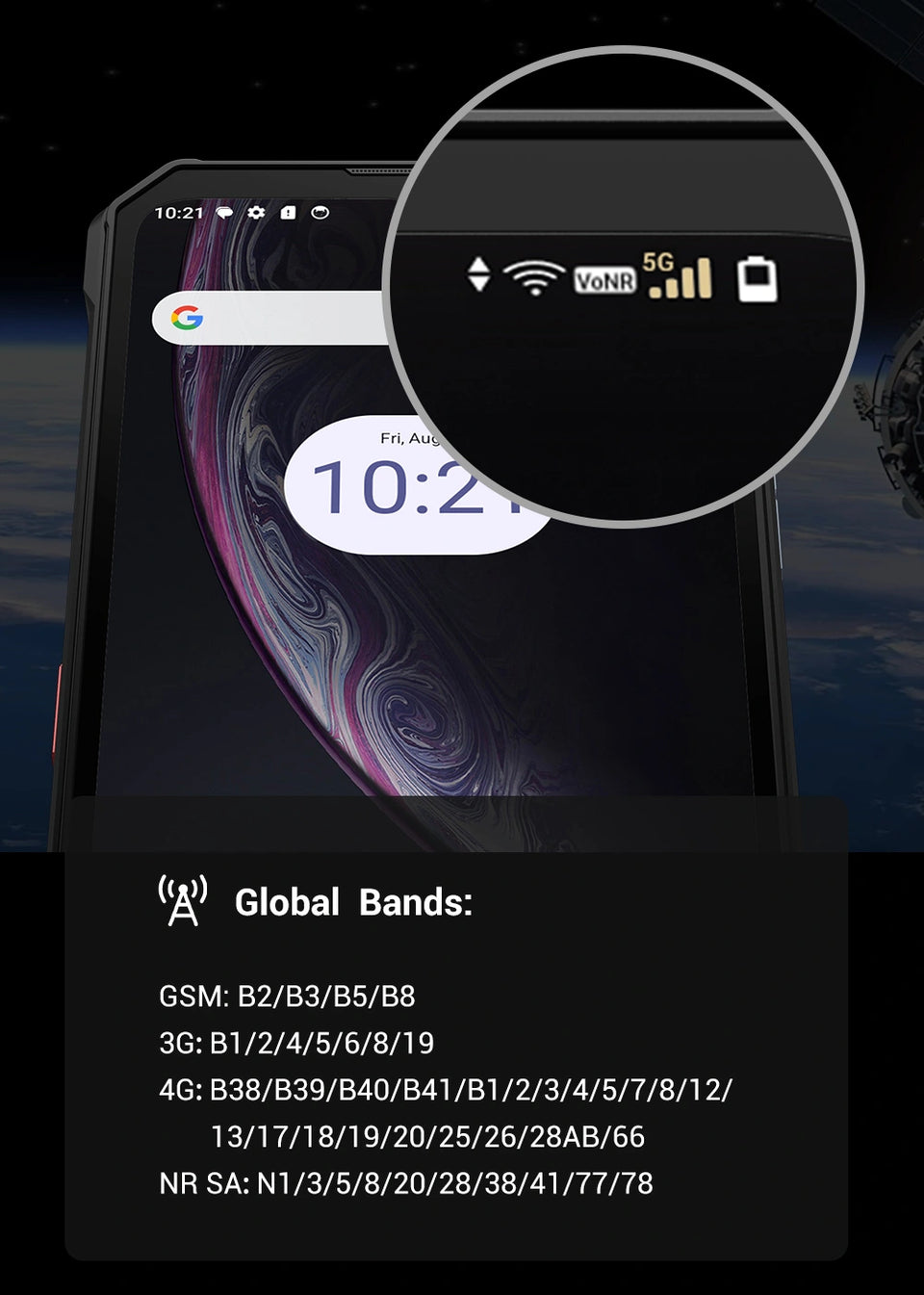

5G Global Network,Adventure Anywhere
FOSSiBOT F109 gains qlobal network for worldwide use. Adventure anywhere you like.

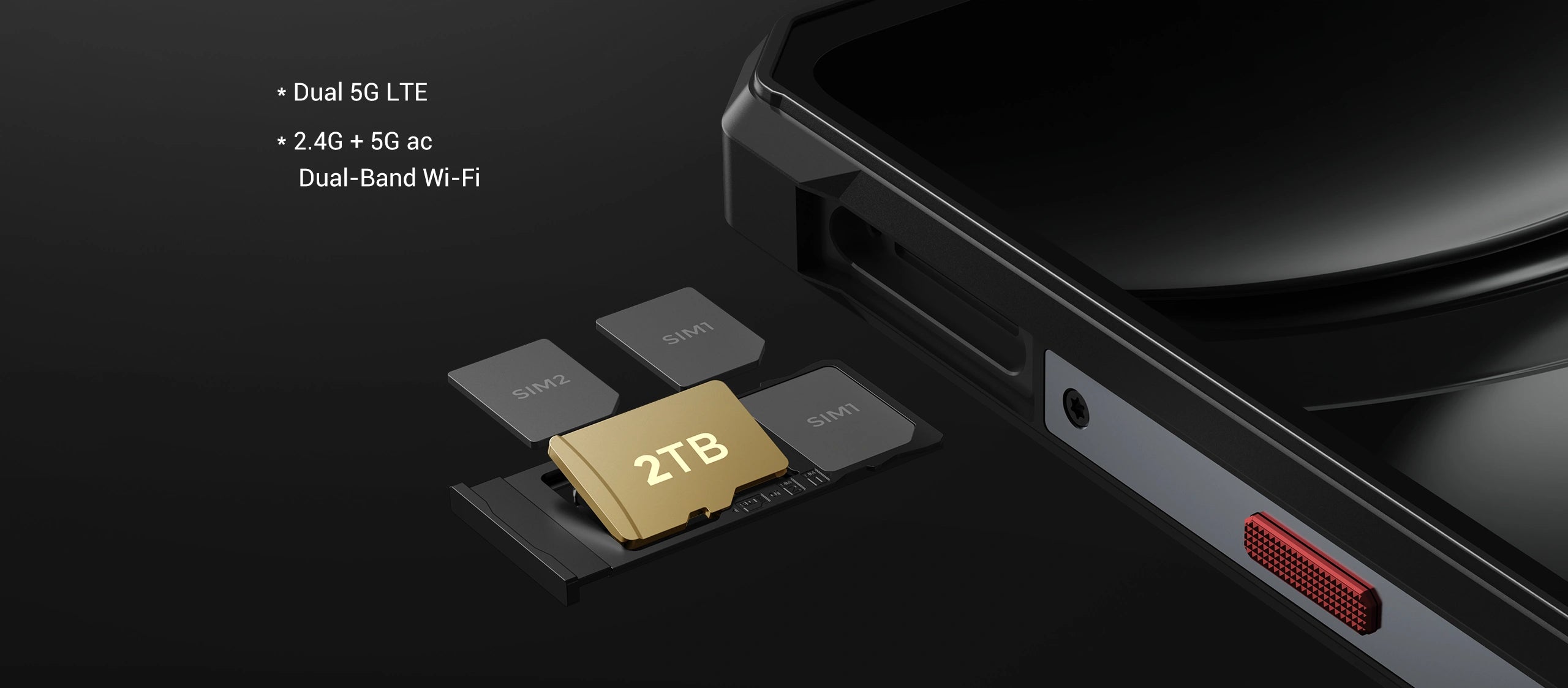

Dual 5G LTE & Dual-band Wi-Fi
Stay connected wherever you are with dual 5G SlM slots, Discover the world with fastest 5G speed.

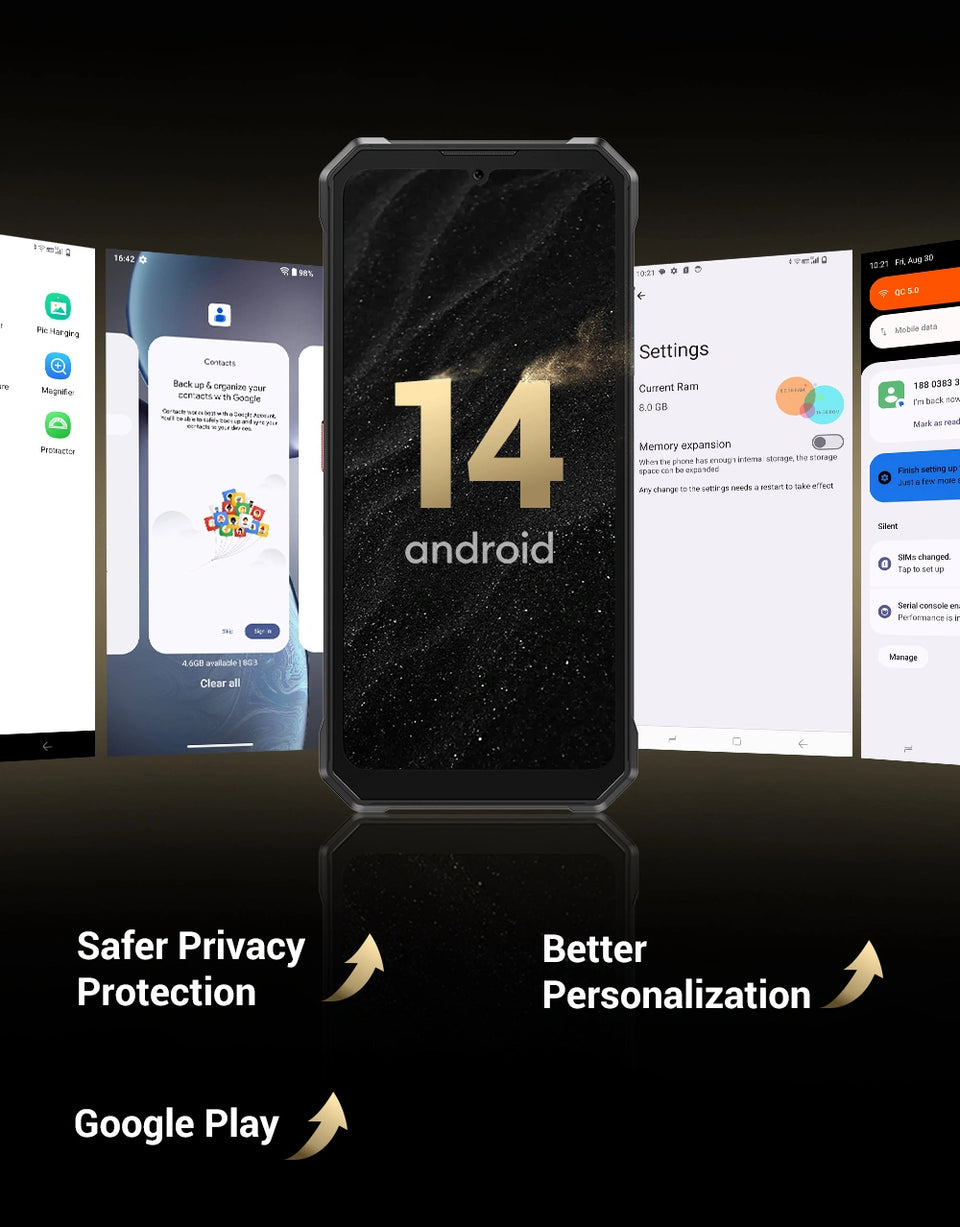

Latest Androld 14 0S
Running on latest Android 14, the FOSSiBOT F109 provides a smooth and user-friendly interface. Excep- tional speed, multitasking, and innovation await.
Unlock with Face lD or Fingerprint
Unlock your phone instantly with the touch of a fingeror a quick glance at the front camera, using advancedfingerprint and Face lD technology for secure and ef-fortless access.
Custom Button For Quick Access
Customize your experience with a dedicated button, allowing quick access to your favorite app or function with just a single press/double press/long press at the custom button.
Certificate of Quality
Rugged phones are not manufacturered,but designed, strict processing control and thousands of tests ensures the high quality of the F109.All for an perfect phone to reach you

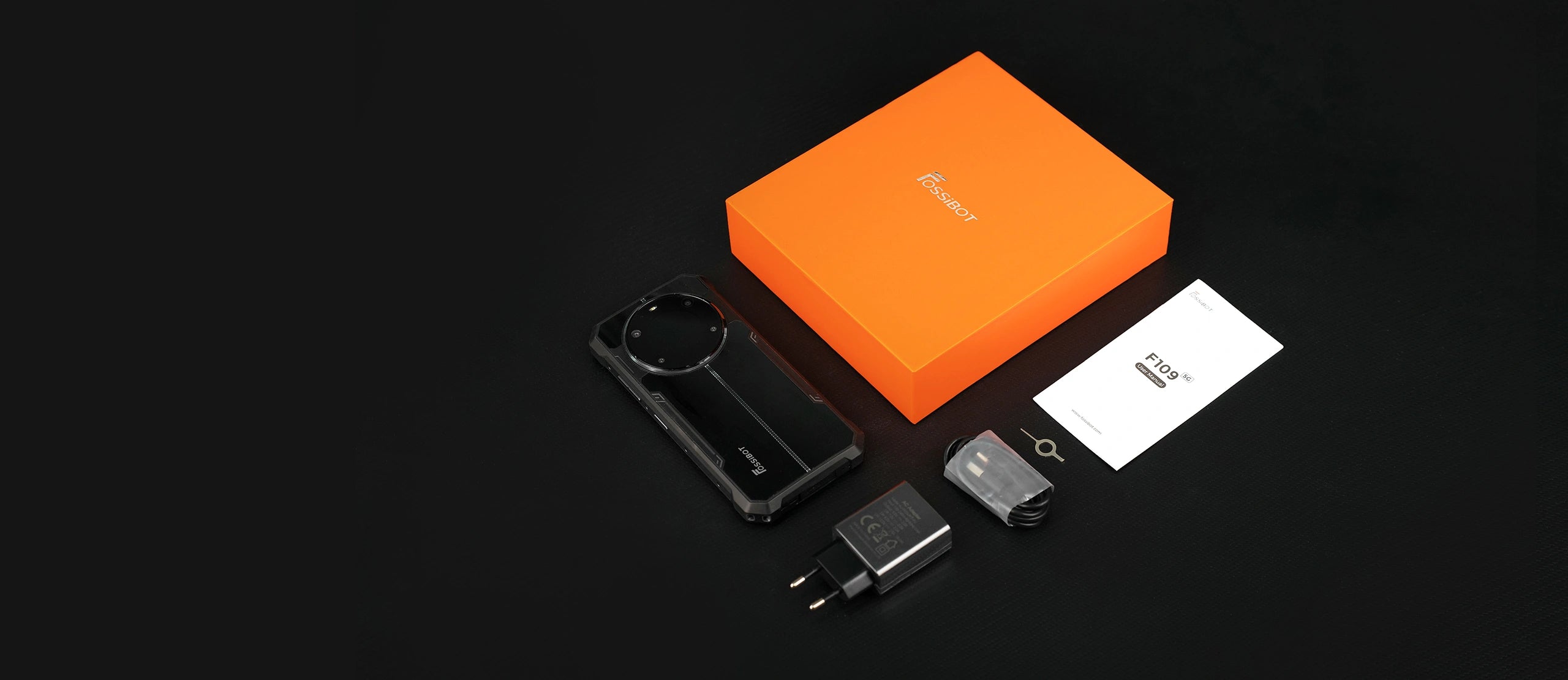

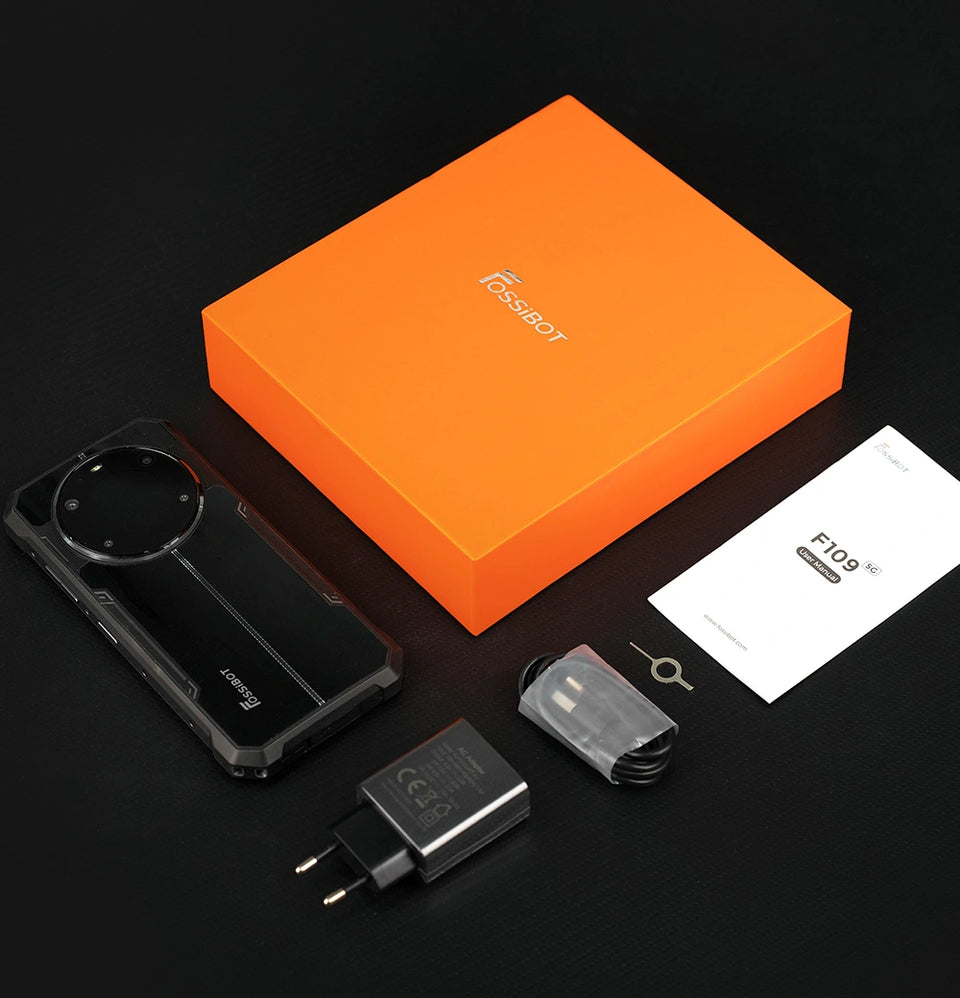

Package Contents
1*Package Box | 1*Smartphone | 1*Type-C USB Cable | 1*18W Charger | 1*User Manual/ Warranty Card | 1*SIM Card Pin
Package Contents
  • Package Box
  • Smartphone
  • Type-C USB Cable
  • 18W Charger
  • User Manual/ Warranty Card
  • SIM Card Pin

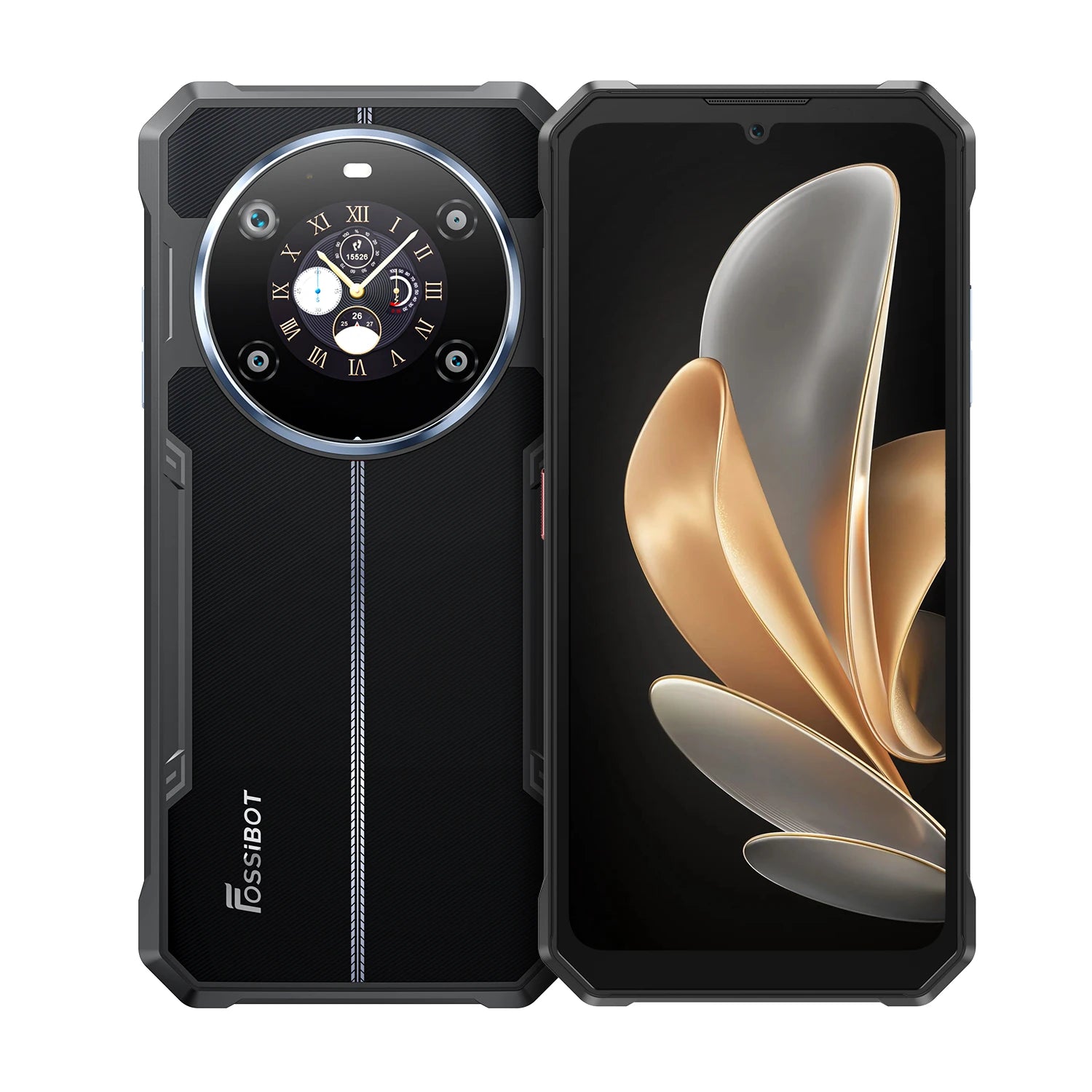

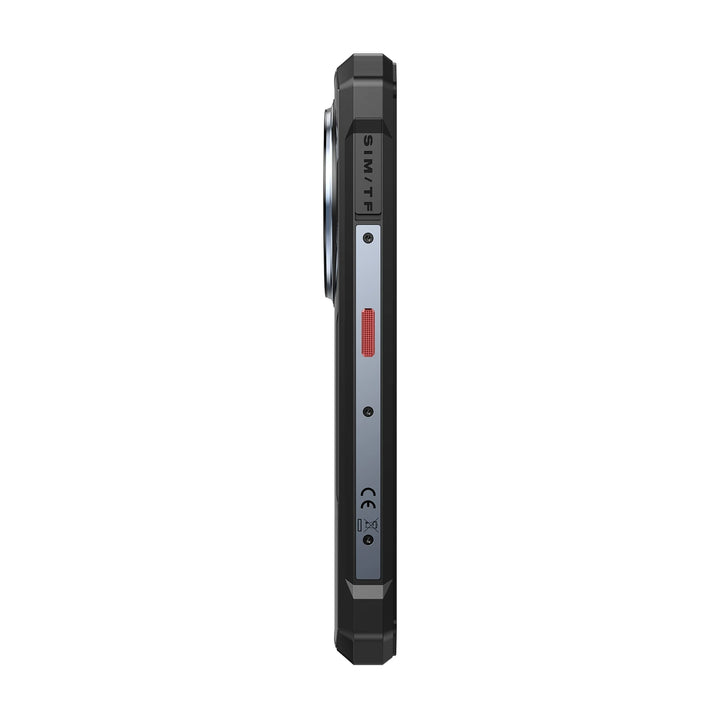

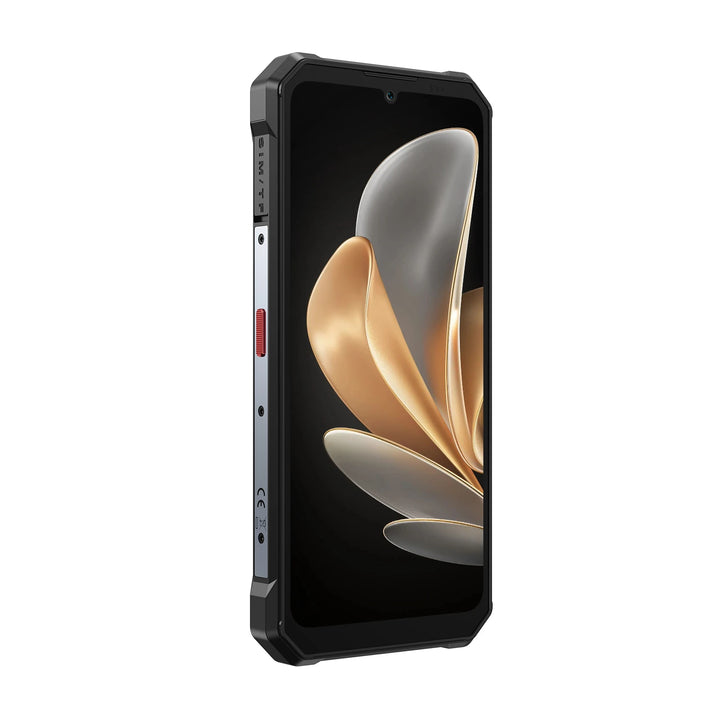

FOSSiBOT F109
  • files/F109-9.webp

Dimensions

Height: 176.1mm

Width: 81.7mm

Thickness: 18.5mm

Weight:≈ 385g

Battery & charging

Capacity: 10600mAh

Fast Charging: 18W

Material: Built-in lithium-ion polymer

Voltage: 4.45V

Standby Time:

Single card standby: 603 hours

Dual card standby: 547 hours

Calling: 41H

(*Half the volume of the extinguished screen)

* The endurance data comes from the FOSSiBOT laboratory

Platform

MediaTek Dimensity 6300

CPU: MT6835V

CPU Core Count: Octa-core

Process Node: 6 nm

CPU Framework: 2x Arm Cortex-A76 2.2GHz * 6x Arm Cortex-A55 2GHz

GPU: G57MC2@950MHz

Storage

RAM & ROM：8GB + 256GB

RAM Type: LPDDR4X

ROM Type: UFS

Expandable RAM Capacity: 16GB

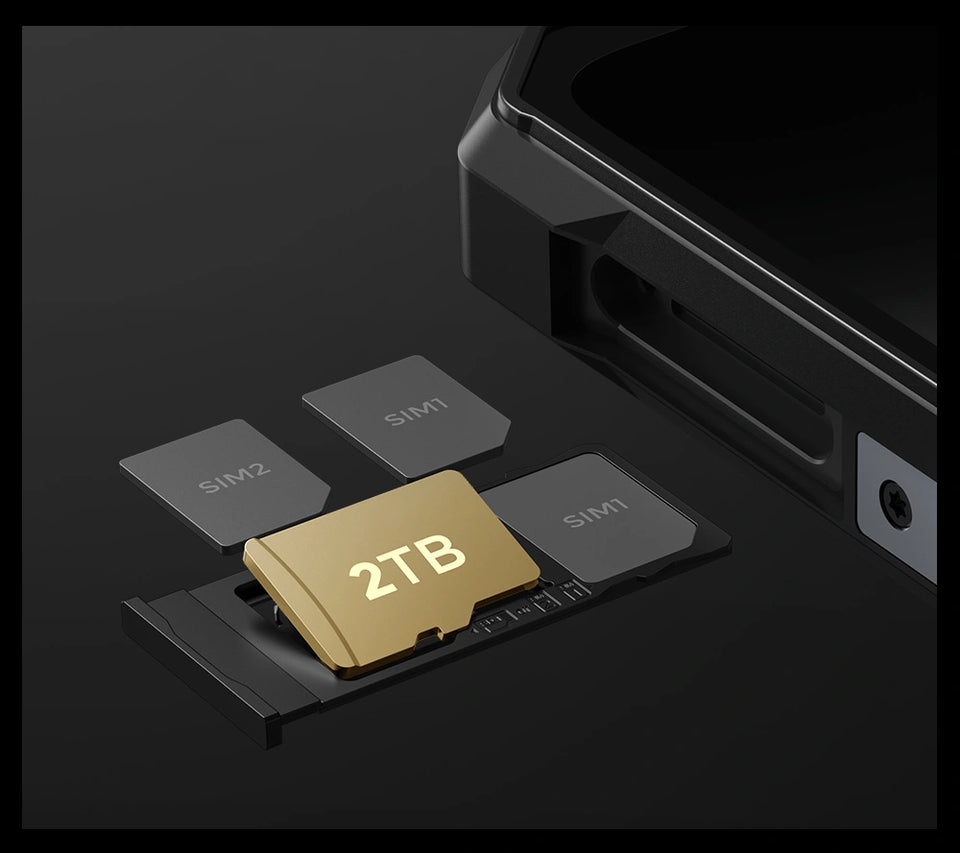

Expandable ROM: Up to 2TB

Memory card type: T-flash card

Card Slot: 2 nano SIMs (SIM1 + SIM2) or 1 nano SIM+TF Card

*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device.
*The Virtual Memory Expansion can be activated in Settings and adds up to 16GB of RAM.

*T-flash card needs to be purchased separately.

Networks &connectivity

*Please Confrim Your SIM Bands Compatibility Before Purchasing!

Supported network bands

Cellular: 4G/3G/2G(Not compatible with AT&T or Cricket activations or with
CDMA Networks like Verizon, Sprint)

Global Pass Band

GSM:B2/B3/B5/B8

WCDMA:B1/2/4/5/6/8/19

FDD:B1/2/3/4/5/7/8/12/13/17/18/19/20

25/26/28AB/66

TDD:38/40/41

NR SA:N1/3/5/8/20/28/38/41/77/78

Supports EDGE/GPRS

Display

Size: 6.745” inches

Resolution: 720*1600(HD+)

Aspect ratio: 20:9

Pixel density: 260PPI

Screen-to-body ratio: 89%

Type: In-Cell Touch

Camera& video

Rear Cameras

50MP PDAF

Sensor: HI5021

Sensing area: 1/2.55inch 6P

Pixel size: 6128*8160

Aperture: F1.8 ± 5%

Front Camera

16MP FF

Sensor: IMX471

Optical dimension: 1/3.1inch

Pixel size: 4608*3456

Aperture: F2.45±5%

Front 5MP Macro-Camera

5MP FF

Sensor: S5K4E8

Optical dimension: 1/4inch,3P

Pixel size: 2560*1920

Aperture: F2.2

Rugged

Water，Dust，And Shock-resistant

IP68,IP69K,MIL-STD-810H

*This device has been tested in a controlled environment and certified to bewater, dust,and shock resistant in specific situations.

Dedicated

Customizable Key X 1

Software toolbox

Compass | Magnifier| Gradienter| Flashlight | Pic Hanging | Height Measure | Warning | Protractor | Plumb bob

Wireless network

Wi-Fi:

WLAN Protocol: Wifi 2.4G(b g n)/5.0G(a n ac ax)

Bluetooth: BT5.2

NFC: Support

FM: Support

OTG: Support

*NFC: It depends on whether the local country supports it

*FM: Plug in headphones to support external playback

*To use the FM function on your smartphone, a virtual headset is required as an antenna. Please purchase a virtual headset separately.

*OTG: Supports reverse charging

Navigation

GPS | GLONASS | Galileo | Beidou | Qzss

Sensor

G-Sensor;

Geomagnetism;

Compass sensor;

Proximity Sensor;

Ambient Light Sensor;

Gyroscope;

Multimedia

Video

Support AVI,MP4,MKV,MOV,M4V,3GP,WEBM，AVI，MTS and other video formats, up to 1080p / 30fps

Audio

Support FLAC,AAC，MKA,MP3,M4A,AMR,WAV,OGG, And other video formats / supports lossless format：ALAC(Apple Lossless), FLAC, APE, WAV


GIF,JPEG,PNG,BMP

Ebook

TXT,HTML

Unlock options

Supports Fingerprint Unlock

Supports Face Unlock

Ports

USB interface type: Type-C

USB version: USB 2.0

Headphone jack type: Type-C

SIM card type: Nano-SIM card

Whether to support dual SIM card: support

*Nano SIM+Nano SIM OR Nano SIM+TF Card

Supported languages

English, Spanish, Portuguese (Brazil), Portuguese (Portugal), ltalian, German,

French, Russian,Arabic, Malay, Thai, Greek, Ukrainian, Croatian, Czech,

Simplified Chinese, Traditional Chinese,Japanese.(lt has updated 48 languages)

Operatinng system

Android 14.0

Certification

Battery certification:

IEC 62133/UN38.3/MSDS/DGM/PSE/Air

Hardware certification:

CE NB(SAR)+ROHS2.0+WEEE/UKCA NB/FCC ID&FCC
SDOC/JATE+TELEC/IP69K /IP68/MIL-STD-810H

Software certification:

GMS

Package contents

1x F109

1x SIM Card Pin

1x Type-C Cable

1x Quick Charger (18W)

1x Packing Box

1x Quick Guide

1x Warranty Card
