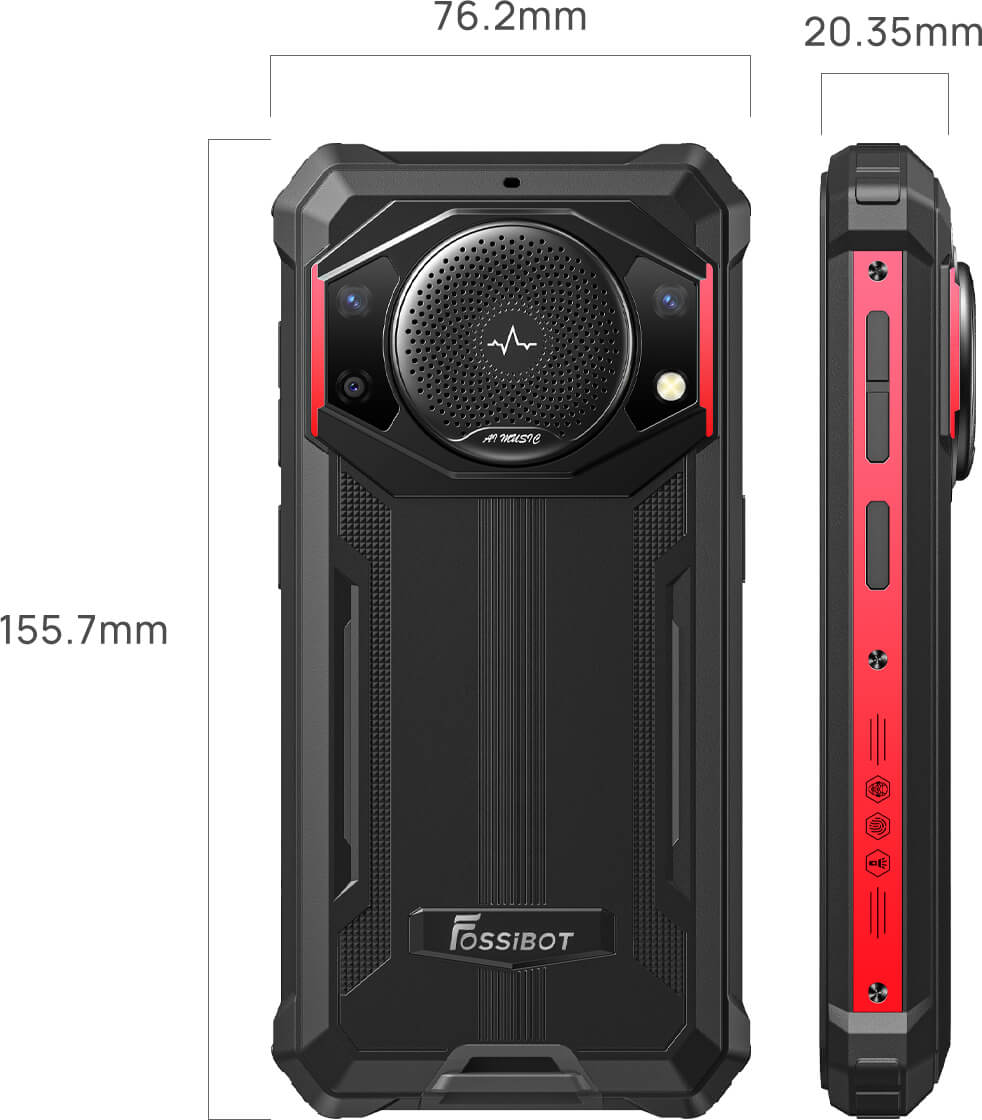

Height: 155.7 mm

Depth: 20.35 mm

10600mAh Battery

Built-in lithium-ion polymer battery

USB Type-C port

Supports 18W fast charging

Battery Life

Standby Time	Up to 1050 Hours
Talk Time	Up to 94 Hours

Certification

Battery certification	UN38.3 / MSDS / Air Freight / Maritime Transport
Hardware certification	CE( IEC62133 / ROHS / SAR ) IP68
Software certification	GMS

*Typical value. Actual capacity may vary slightly. This capacity is the nominal battery capacity. The actual battery capacity for each individual product may be slightly above or below the nominal battery capacity.
*Non-removable battery. Removing the battery may cause damage to the device.
*Use with original charger and data cable, the max charging power can reach 18W. The actual charging power will intelligently change with different scenarios, please refer to the actual use.

Splash, Water and Dust Resistant

Rated IP68/IP69K (maximum depth of 1.5 metres up to 30 minutes) under IEC

standard 60529

Rated IP69K under IEC standard 60529

MIL-STD-810G Certification

*FOSSiBOT F101 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68/IP69K under IEC standard 60529 (maximum depth of 1.5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet FOSSIBOT F101. Liquid damage not covered under warranty.

123dB Quality Loudest Speaker

3.5W peak wattage

25.5 mm speaker diameter

12.5cc-equivalent large sound cavity design

* The data are theoretical values from FOSSiBOT lab based on specific test environment.

MediaTek Helio A22

CPU: MediaTek MT6761 VWB

CPU architecture: 4*Cortex-A53 2.0GHz 12nm

process

CPU frequency: Quad Core, up to 2.0GHz

GPU: IMG GE8300

GPU frequency: 660MHz

4GB RAM+64GB ROM

RAM: 4GB large memory

Flash storage: 64GB phone storage

microSD memory card Up to 128GB

*Available storage and RAM are less than the total memory due to storage of the operating system and software pre-installed in the device.*microSD card needs to be purchased separately. Recommended to use Class 10 memory cards, other memory cards are not guaranteed to be fully compatible.

5.45‑inch (diagonal)

All-screen LCD Multi-Touch display with IPS technology

Resolution: 720 x 1440 HD+

Aspect Ratio: 18:9

Screen-to-body ratio: 77%

Fingerprint-resistant oleophobic coating

*With a rounded corners design on the display, the diagonal length of the screen is 5.45 inches when measured according to the standard rectangle (the actual viewable area is slightly smaller).*The resolution measured as a standard rectangle, with a rounded corners design, the effective pixels are slightly less.

24MP + 5MP +0.3MP Rear Camera

24MP Main Camera

5MP Macro Camera

0.3MP bokeh Camera

Samsung S5K2L8 Sensor

1.12μm, FOV 82°

ƒ/2.2 large aperture, 6 piece lens

Depth Sensor

Photo resolution: up to 3024x4032 pixels

Video resolution: up to 1920x1080 pixels

LED Flash

Rear camera photography features

Normal mode，Night Mode, Pro Mode, Macro Mode, UHD, Portrait, Gif,

Panorama mode, Time Lapse, Intelligent Scanning

HDR, Filters, AI scene detection, Location info, Camera

mute, Touch shooting, Self timer, Grid line, Volume key feature, Anti flicker

*The actual photo and video resolution may vary depending on the shooting mode.
*The camera software functions are subject to actual presence, some functions and names may vary depending on the software version.

8MP selfie camera

OV8865 Sensor

1.12μm, 4 piece lens, FOV 86.4°, ƒ/2.2 large aperture

Front camera photography features

Normal mode, Portrait, Gif

Panorama mode, Time Lapse, Intelligent Scanning

Filters, Location info, Mirror, Camera mute, Touch

mute, Touch shooting, Self timer, Grid line, Volume key feature, Anti flicker

*The camera software functions are subject to actual presence, some functions and names may vary depending on the software version.

Supports Fingerprint Unlock

Side-Mounted Fingerprint, Integrate power key and fingerprint sensor

Capacitive Touch Sensor

Response speed: Up to 0.1s

Supports Face Unlock

*Please Confrim Your SIM Bands Compatibility Before Purchasing!
Supported network bands

Cellular :4G/3G/2G（Not compatible with AT&T or Cricket activations or with CDMA Networks like Verizon, Sprint

Both cards can access 4G connectivity simultaneously

Dual Nano SIM; either card can be set as the primary card

Supports 4G/3G/2G

Supports VoLTE HD calling

Supported network bands (Global version)

2G: B1/B2/B4/B5/B8

3G: 850/900/1800/1900MHz

4G: B38/B39/B40/B41/B1/B2/B3/B4/B5/B7/B8

B12/B17/B18/B19/B20/B25/B26/B28A/B28B/B66

B38/B39/B40/B41

Supported network bands (Eurasian)

2G: B2/B3/B5/B8

3G: B1/B8

4G: B1/B3/B7/B8/B19/20

*Dual 4G SIM requires the support of local telecom operator services, and may not be available in all regions.，
*Only certain regions and telecom operators support VoLTE.

WLAN

Supports protocols: 802.11 a/ac/b/g/n

Supports 2.4G Wi-Fi / 5G Wi-Fi

Bluetooth

Supports Bluetooth 4+

Software Toolbox

SoundMeter

Pic Hanging

Magnifier

Protractor

Plumb Bob

Warning

Privacy protection, visitor mode

Android 12

Pure Android System

No ads

G-sensor, G-sensor, Proximity sensor, Ambient light senor, Compass (magnetic), Geomagnetism

Video	MOV/FLV/MKV/AVI/3GP/MP4
Audio	MID/FLAC/MKA/MP3/M4A/AAC/AMR/OGG/MP22
Image	GIF, JPEG, PNG, BMP
Ebook	TXT, HTML

USB 2.0, Type-C

Three(3), Nano SIM + Nano SIM+microSD

English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, French, Russian, Arabic, Malay, Thai, Greek, Ukrainian, Croatian, Czech, Simplified Chinese, Traditional Chinese.（It has updated 48 languages）

FOSSiBOT F101

AC Power Charger

Data Cable

SIM Needle

Multi-language user manual

*EU plug charger equipped standardly, there may be some differences of the provided charger according to different regions, please confirm with the sellers.*May vary in different market. Subject to the actual product.*The apperance of package and accessories may be different, but the function remain the same, please refer to the actual.

The phone pictures and screen content on the above are for illustration only. The actual phone (including but not limited to appearance, color, size) and screen (including but not limited to background, UI, and graphics) may be slightly different. Please refer to the actual product. The data on the page are theoretical values from FOSSiBOT lab based on specific test environment (see details at specific description). In actual use, there may be slight differences due to product differences, software versions, use conditions and environmental factors, so please refer to actual situation as final. The preceding specifications are theoretical values based on product design. Some features and specifications may vary across markets. To provide accurate product information, specifications, and features, FOSSiBOT may make real-time adjustments to the preceding specifications, so that they match the product performance, specifications, indexes, and components of the actual product. Product information is subject to such changes and adjustments without notice. The Android® word mark and logos are registered trademarks owned by Google. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. USB-Type C™ and USB-C™ are trademarks of USB Implementers Forum.
